Hybrid control using fuzzy logic and adaptive space vector modulation for reduction of torque ripples in PM-BLDC motor drive

Abstract

A novel hybrid control strategy for reducing torque ripple in permanent magnet brushless direct current motors has been developed by combining the deterministic nature of direct torque control and the adaptive nature of fuzzy logic control. Direct torque control using space vector pulse width modulation has been developed. This technique ensures the near-sinusoidal nature of the stator and rotor current. The impact of commutation ripple corresponding to the sinusoidal current is reduced compared to square wave current in conventional direct torque control. Further, the fuzzy logic controller provides adaptive modulation in space vector to mitigate the torque ripple. The response of the proposed method has been analyzed in the time domain as well as in the frequency domain. Experimental results establish a significant reduction in torque ripple and minimization of high-frequency components. A comparative study with conventional direct torque control methods has also been presented.

Introduction

The modern transport and industrial sector are witnessing the ever-increasing application of permanent magnet brushless direct current (PMBLDC) motors as a main workhorse. PMBLDC motor has a major shortcoming of torque ripple. This restricts its application in vehicular field due to noise and vibrations [1]. Therefore, reducing the torque ripple has been the research focus over the last few decades. A fair amount of ongoing research is also concentrated in this field. The two major reasons for the torque ripple are the commutation of the phase currents and the non-ideal back-EMF waveform. In early literature, majority of torque ripple minimization methods are based on current shaping by injecting selected harmonic components in a phase current waveform [2]. These methods used complex Fourier decomposition and iterative approach to eliminate torque harmonics. The current harmonic injection technique is based on open-loop cancellation concept which lacked experimental verification. There has been a consistent effort for reducing the commutation torque ripple with varying degrees of success. The torque ripple due to non-ideal back-EMF has also been addressed through creating an inverse of back-EMF waveform and assuming constant rotor speed [3,4,5]. In [6], the authors have established the effectiveness of suitable placement of space vectors for high DC bus voltage utilization. Significant reduction in total harmonic distortion has been experimentally verified with AC motor load. In [7], the authors have used space vector modulation with Dead-Beat direct torque control (DTC) and flux control strategy. A significant improvement is reported in a steady-state performance with the rapid dynamic response of the permanent magnet synchronous motor (PMSM) drive. However, the algorithm used has high computation complexity. In [8], the authors have used space vector pulse width modulation in conjunction with a duty-ratio regulator to synthesize the space vector. The variable duty-ratio achieves the desired reduction in torque ripple. This method reportedly achieves better steady-state performance with faster step response. In [9, 10], the authors have used fractional order-PID (FOPID) controller for speed control of a BLDC motor. The FOPID circuit has been realized by operational transconductance amplifiers (OTA) using an advanced circuit simulator. In [11, 12], the authors have addressed the torque ripple present in a PMBLDC motor drive. A Spider-based biologically inspired algorithm has been used to generate the pulse width modulated switching control. The torque ripple has been additionally addressed using a small dc-link capacitor with a single-phase voltage source. However, the torque ripple has been reportedly contained only up to 7%. In [13], the authors have used the differential evolution Krill-herd method, for optimization of controller gain in servo controller for BLDC motor. Although improvement in speed response has been established, the torque ripple mitigation has not been addressed. In [14,15,16], the authors have used the fuzzy logic control (FLC) to address the limitation of bandwidth of a PI control. The authors in [14] have used the adaptive FLC-based field weakening region of permanent magnet synchronous motor (PMSM) drive that gives it the better capability of field weakening and robust control. In [17], the authors have used FLC in a closed loop to overcome large phase delays in the estimation of back-emf. This method is used to extract the line-to-line back-EMF from the terminal voltage of a sensor-less BLDC motor drive. The fuzzy-based compensation in phase delay improves the commutation precision. In [18,19,20], FLC-based approach has been taken for the speed control of the BLDC motor. Here, the membership function has been tuned using an ANN-based algorithm. Simulation results show significant improvement in dynamic performance parameters. However, the negative torque ripple has not been addressed. In [21], the authors have used line to line flux linkage determination to achieve exact identification of rotor angle in a sensor-less BLDC motor. The accuracy of rotor angle estimation results in better implementation of mitigation process for commutation torque ripple. In [22], the authors have investigated the effect of sinusoidal phase current vis a vis square wave phase current in a PMBLDC motor and its effect on torque and torque ripple. Since sinusoidal current yields better result, it is better to use space vector pulse width modulation (SVPWM) which generates near sinusoidal phase current due to three level phase voltages applied to it. In this paper, the authors have developed an adaptive space vector pulse width modulation based on fuzzy logic controller. The FLC has been developed based on error pattern shown in Fig. 1.

Fig. 1
figure 1

Torque error analysis for proposed method

Methods

An adaptive space vector pulse width modulation based on fuzzy logic controller has been developed in order to mitigate torque ripples. Also, a comparative analysis with the two conventional Direct Torque Control methods has been done for validating the improvement in torque ripple of PMBLDC motor drive. The proposed methodology is explained using the block diagram in Fig. 2. The control strategy also has been shown using flow chart in Fig. 8. It has four major subsystems described as below:

Fig. 2
figure 2

Schematic block diagram of proposed method using fuzzy logic control

Subsystem 1—flux and torque estimation

This subsystem estimates flux and torque in the PMBLDC motor. The Stator and rotor flux linkage as well as electromagnetic torque have been estimated using Eqs. (1)–(8).

The torque estimation for a PMBLDC motor with trapezoidal back-EMF is computed using (1) in stationary reference frame α-β.

$${T}_{e}=\frac{3}{2}\frac{P}{2}\left[\frac{d{\Psi }_{r\alpha }}{d{\theta }_{r}}{i}_{s\alpha }+\frac{d{\Psi }_{r\beta }}{d{\theta }_{r}}{i}_{s\beta }\right]$$
(1)

where \({\Psi }_{r\alpha }\) and \({\Psi }_{r\beta }\) are the rotor flux linkage along α and β axis, respectively, \({\theta }_{r}\) is the rotor angle with respect to stator phase-A. P denotes the number of poles. \({i}_{s\alpha },{i}_{s\beta }\) are stator current in stationary reference frame α-β.

The rotor flux linkages and angle can be obtained from the stator flux linkages by (2)–(4)

$${\Psi }_{r\alpha }={\Psi }_{s\alpha }-{L}_{s}.{i}_{s\alpha }$$
(2)
$${\Psi }_{r\beta }={\Psi }_{s\beta }-{L}_{s}.{i}_{s\beta }$$
(3)
$${\theta }_{r}=\frac{\left({\Psi }_{s\beta }-{L}_{s}.{i}_{s\beta }\right)}{\left({\Psi }_{s\alpha }-{L}_{s}.{i}_{s\alpha }\right)}$$
(4)

where \({L}_{s}\) is the inductance of the stator winding of a surface-mounted permanent magnet motor.

Stator flux linkage vector is expressed in terms of stator voltages \({u}_{s\alpha },{u}_{s\beta }\), stator currents \({i}_{s\alpha },{i}_{s\beta }\), and stator resistance \({R}_{s}\) using (5) and (6). The magnitude (\({\Psi }_{s}\)) and angular position (\({\theta }_{s}\)) of the stator flux linkage vector is obtained by (7)–(8).

$${\Psi }_{s\alpha }=\int {u}_{s\alpha }.dt-{R}_{s}\int {i}_{s\alpha }.dt+{\Psi }_{s\alpha }\left(0\right)$$
(5)
$${\Psi }_{s\beta }=\int {u}_{s\beta }.dt-{R}_{s}\int {i}_{s\beta }.dt+{\Psi }_{s\beta }\left(0\right)$$
(6)
$${\Psi }_{s}=\sqrt{{\Psi }_{s\alpha }^{2}+{\Psi }_{s\beta }^{2}}$$
(7)
$${\theta }_{s}=\frac{{\Psi }_{s\beta }}{{\Psi }_{s\alpha }}$$
(8)

An analysis of shape of torque-error in a typical DTC control drive reveals a correlation between significant torque errors and rate of change in torque occurs. This error leads to a high torque ripple if not mitigated through equally fast corrective measures. Thus, there is a need to identify such control points and select an appropriate space vector to reduce the torque error with a befitting correction rate. In conventional DTC, this aspect is not taken care. Figure 1 shows the typical torque error pattern generated in a DTC. The error pattern has been categorized as low error, medium error, high error, and zero error. These different error ranges enable application of FLC in combination with the SVPWM technique for mitigation of torque ripple.

Subsystem 2—fuzzy logic controller

The FLC modulates the time duration of space vector for torque error correction depending on magnitude of torque error and rate of change of torque error. The working of FLC is explained below.

Generation of membership functions for FLC

The error and the rate of change of error between the reference torque and estimated torque have been divided into seven fuzzy membership functions. If the error is positive, then the positive error is assigned three membership functions viz. positive small (PS), positive medium (PM), and positive big (PB). However, if the error and rate of change of error are negative then they are assigned accordingly with other three membership functions viz. negative small (NS), negative medium (NM), and negative big (NB). The zero error is defined through membership fn. (Z) as shown in Fig. 3. The assignment of membership values corresponding to error values for any given membership function has been determined by an off-line ANN algorithm. The ANN algorithm is trained on the mathematical model of PMBLDC motor in order to minimize the torque error and the negative torque ripple. The developed membership functions for error, rate of change of error, and correction duration are shown by Fig. 3(a)–(c), respectively.

Fig. 3
figure 3

a Torque error—membership function. b Rate of change of torque error-membership function. c Correction duration- membership function

Fuzzy rule base

A fuzzy inference system (FIS) has been developed between the two input variables and one output variable. The input variables are error and rate of change of the error. The output variable is the incremental timing duration of space voltage vector. The output membership function is shown in Fig. 3(c). The rule base between input and output variables is represented by Table 1.

Table 1 Rule base

Generation of actuating signal

The FIS will select suitable membership function for implementing correction in time duration of a particular space vector. This is done by computing the centroid of output membership function. The centroid value represents the positive or negative incremental crisp value of time duration of the space voltage vector. The output variable for correction in time duration is given by the fuzzy logic control (FLC) system.

Subsystem 3—SVPWM control

To implement the torque control, the required space vector is synthesized by two adjacent vectors and null vector, by using SVPWM block. The three phase Voltage Source Inverter (VSI) feeding the PMBLDC motor is used for implementing the SVPWM technique. Three phase voltage source inverter and space vector diagrams are given in Figs. 4 and 5. In Fig. 5, the diagram shows the time duration of T1 and T2. T1 is the time for which vector V1 is applied, and T2 is the time for which vector V2 is applied, and T0 is the time for which null vector is applied. T1, T2, T0, and modulation index \(a\) are calculated in SVPWM block using (9)-(12).

Fig. 4
figure 4

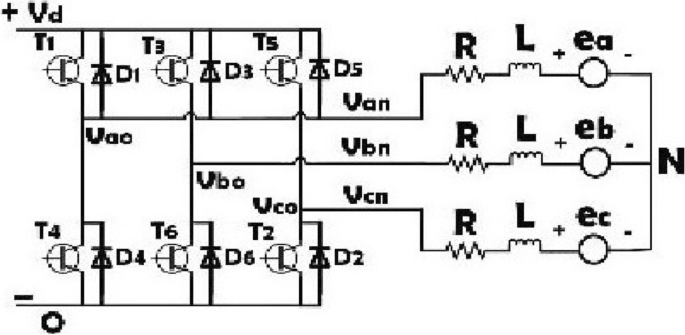

VSI feeding PMBLDC motor

Fig. 5
figure 5

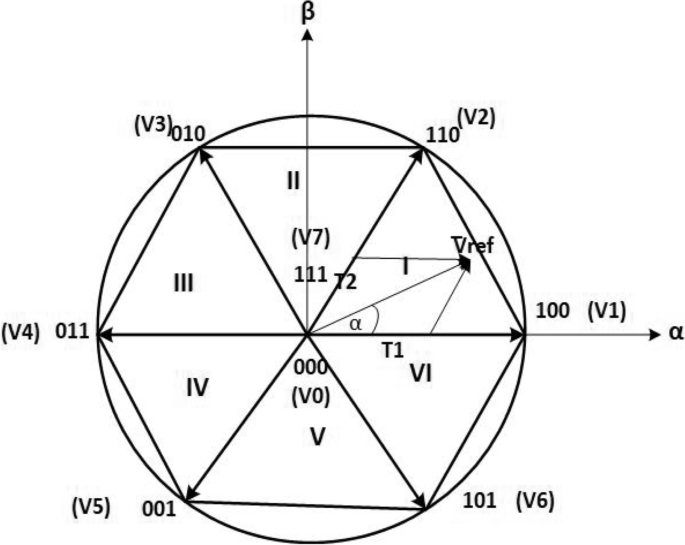

Space vector diagram for SVPWM

$${T}_{1}=\frac{\sqrt{3}}{{V}_{dc}}{T}_{z}*\left|{\overrightarrow{V}}_{ref}\right|*\left[\mathrm{sin}\left(n*\frac{\pi }{3}-\alpha \right)\right]$$
(9)
$${T}_{2}=\frac{\sqrt{3}}{{V}_{dc}}{T}_{z}*\left|{\overrightarrow{V}}_{ref}\right|*\left[\mathrm{sin}\left(\alpha -\frac{n-1}{3}*\pi \right)\right]$$
(10)
$${T}_{0}={T}_{z}-\left({T}_{1}+{T}_{2}\right)$$
(11)
$$a=\frac{\left|{\overrightarrow{V}}_{ref}\right|}{\frac{2}{3}*{V}_{dc}}$$
(12)

Here, \(a\) is the modulation index, \(n\) is the number of sectors, and \({T}_{z}\) is the sampling time. SVPWM switching sequence showing the status of the upper and lower switching transistors are shown by diagram in Fig. 6, for sector 1 and sector 2. Effect of modulation in switching time duration on the resultant voltage vector in case of sector 1 is shown below in Fig. 7(a)–(c) under three possible scenarios.

Fig. 6
figure 6

SVPWM switching sequence for sector1 and sector 2

Fig. 7
figure 7

a No change, b decrease in torque, and c increase in torque

Scenario 1

When the correction in time duration is within the zero-membership zone, the output of FLC will have zero incremental value as crisp value. The addition of this value to the T1 or T2 will have no change in space voltage vector as shown in Fig. 7(a).

Scenario 2

When the correction in time duration has positive incremental value as output of FLC, the incremental crisp value is added to the time duration of the leading space voltage vector. This results in the incremental increase in the magnitude of the resultant space vector Vr in the direction of rotation to correct the desired torque as shown in the Fig. 7(b).

Scenario 3

When the correction in time duration has negative incremental value as output of FLC, the magnitude of incremental crisp value is added to the time duration of the lagging space voltage vector. This results in the incremental increase in the magnitude of the resultant space vector Vr in the opposite direction of rotation to correct the desired torque as shown in Fig. 7 (c). The proposed method has been validated through simulation and experimental work.

Subsystem 4—DC drift compensation

The DC drift compensation block uses adaptive magnitude compensation (AMC) for elimination of DC offset in stator flux linkage [23]. The proposed method addresses the problem of pure integration-related dc drift and eliminates DC offset in stator flux linkage. Adaptive magnitude compensation compares two components, feed forward and feedback, one from the output of the (LPF) low pass filter and second from the output of the magnitude compensation feedback, till the error is zero at the point of back-emf and flux becoming orthogonal to each other. The result is shown in Fig. 16, with the xy plot of Psi-alpha and Psi-beta. The plot shows the effect of AMC in the final output of flux magnitude, which after transient, migrates to zero DC offset in the steady state. The proposed control strategy has been shown using flow chart in Fig. 8. This illustrates mechanism for fuzzy logic-based space vector modulation depending upon torque error. This has been explained in previous section in detail.

Fig. 8
figure 8

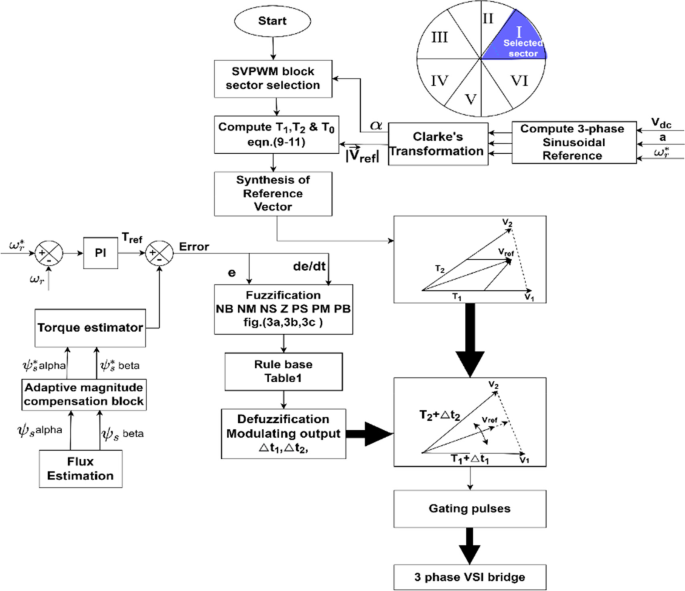

The flow chart for proposed methodology

A comparative study of conventional DTC and SVPWM and FLC-based adaptive DTC

A conventional DTC scheme uses square wave current, whereas a SVPWM-based DTC scheme employs a three-level phase voltage to produce near sinusoidal wave current. Investigation of simulation result Fig. 16 and experimental result corresponding Fig. 26 shows the better performance of the sinusoidal current supply both from the point of view of the motor torque and the torque ripple. The torque ripple with sinusoidal current supply is constant from zero up to the base speed, while it changes with the speed during the commutations for the square-wave current supply in case of conventional DTC. This is due to the phase inductance of the motor which slows down both rise and fall of the phase currents in case of square wave currents. Figure 9 below explains the commutation ripple in conventional DTC as a result of unequal rate of falling and rising currents due to phase inductances. At lower speed, the torque ripple is positive, and at higher speed, it is negative. The torque ripple with sinusoidal current supply is much lower both at low and high speed.

Fig. 9
figure 9

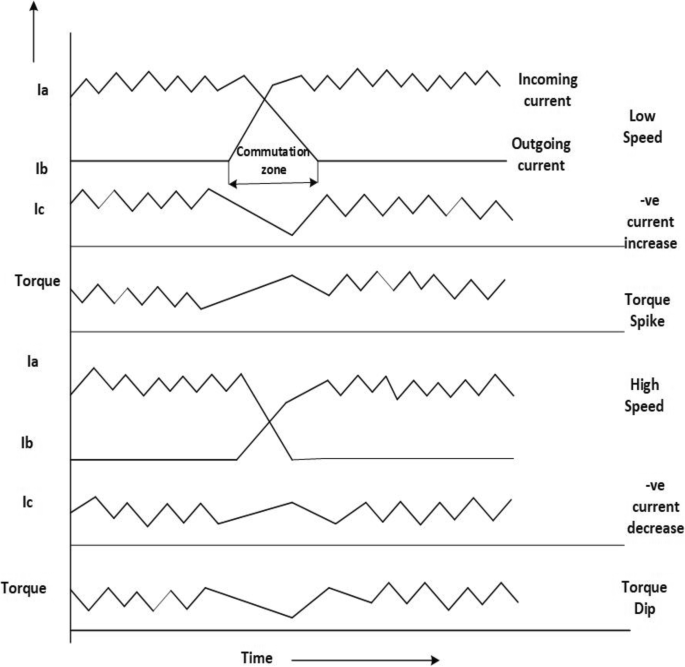

Analysis of commutation torque ripple in conventional DTC

A conventional DTC applies a single-voltage vector to correct torque error. This produces fixed torque irrespective of the magnitude of torque error. Thus, causing overshoot. Whereas in fuzzy logic-based DTC, the magnitude of torque error as well as the rate of change of error has been divided under seven membership functions to limit the over shoot of error correction. This mechanism is shown using flowchart in Fig. 8. A comparative result of torque ripple has been presented in Tables 2 and 3 as compared to other evolutionary algorithms [20]. Table 4 shows a comparison of the proposed method with conventional DTC methods in terms of percentage torque ripple for a wide-speed range (20 to 100 rad/s). However, at a very low speed, flux and torque estimation becomes very difficult due to negligible back EMF. The literature on neural network based PMBLDC drives is limited.

Table 2 Motor parameter
Table 3 Proposed method torque ripple percent at various speeds compared to various other methods
Table 4 Torque ripple percent comparison

Results and discussions

The simulation and experimental results are discussed in the following subsections for validation of the proposed method. The comparative study of results of conventional DTC and proposed FLC-based SVPWM system have been analyzed both in time and frequency domain.

The simulation and experiment have been conducted on eight pole PM BLDC motor with the following parameters given in the Table 2. The load torque was provided using a coupled DC generator with electrical loading.

Simulation results and discussions

The developed model was simulated with the PMBLDC motor with the parameter given in Table 2, at a load torque of 10 N-m and at a speed of 40 rad/s. For comparative study, two other conventional DTC methods are also simulated. Here, method 1 uses six space voltage vectors and two-phase switching DTC and method 2 uses six space voltage vectors with three-phase switching DTC. The results of simulations presenting instantaneous and mean torque value are shown in Figs. 10, 11, and 12. The torque ripple in case of all three methods has been computed using (13). The mean torque in each case has been zoomed and shown in Figs. 13, 14, and 15, where the proposed method shows significant improvement (2.33%) in torque ripple shown in Fig. 15, as compared to other two conventional DTC methods. To further validate proposed method, the simulation was run from 20 to 100 rad/s speed with an incremental step of 20 rad/s. Figure 16 shows the simulation results of the proposed method at 40, 60, 80, and 100 rad/s of varying speed command. The comparative results of torque ripple have been tabulated in Table 4. The proposed method shows better torque ripple mitigation for a wide-speed range.

Fig. 10
figure 10

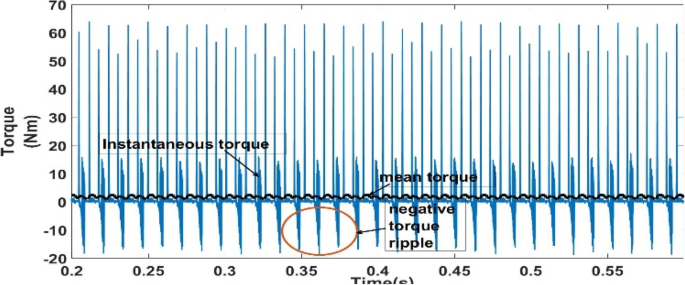

Method 1—instantaneous and mean torque value

Fig. 11
figure 11

Method 2—instantaneous and mean torque value

Fig. 12
figure 12

Proposed method—instantaneous and mean torque value

Fig. 13
figure 13

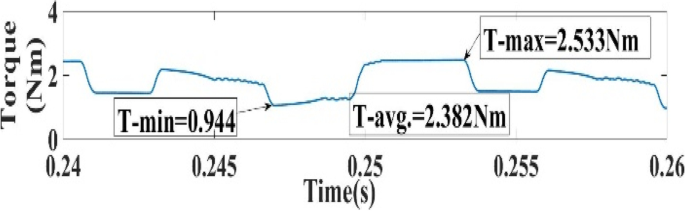

Method 1—torque ripple (66.7%)

Fig. 14
figure 14

Method 2—torque ripple (21.97%)

Fig. 15
figure 15

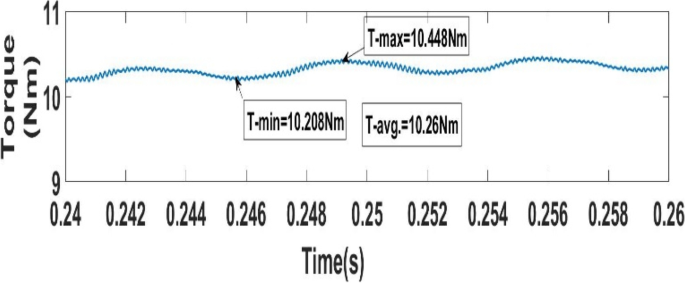

Proposed method—torque ripple (2.33%)

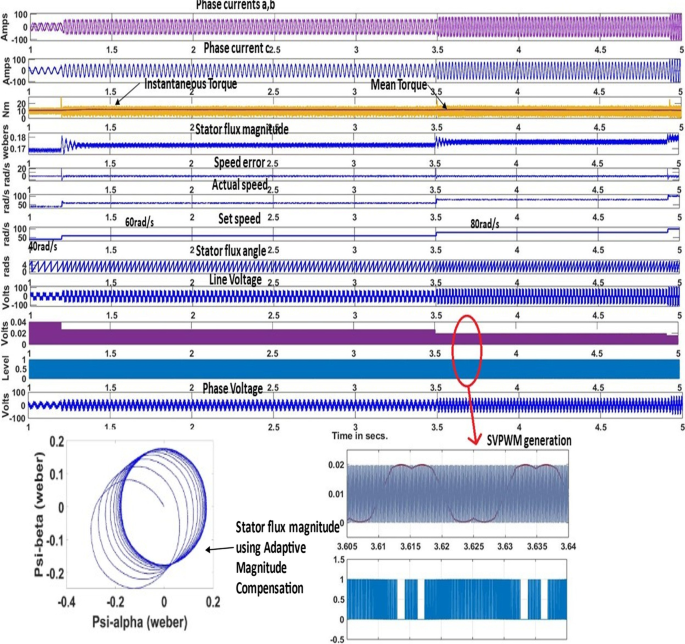

Fig. 16
figure 16

Proposed method simulation for 10Nm with varying speeds of motor at 40 rad/s, 69 rad/s, 80 rad/s, and 100 rad/s showing respective stator phase currents, torques, stator flux magnitudes, angles, speed error actual speeds, and set speed with line and phase voltage

$${T}_{-ripple}\%=\frac{{T}_{max}-{T}_{min}}{{T}_{avg}}\times 100$$
(13)

Step response and frequency response analysis

Step response

The speed response obtained from simulation is shown in Fig. 16 for various speed commands. Further, the transient characteristics corresponding to speed command of 40 rad/s, 60 rad/s, and 80 rad/s have been zoomed in and shown Figs. 1718, and 19, respectively. Dynamic parameters of time domain response for different speed-step command are given in Table 5.

Fig. 17
figure 17

Transient and steady-state response captured at step 1 (0–40 rad/s) and 10-Nm load torque for the proposed method

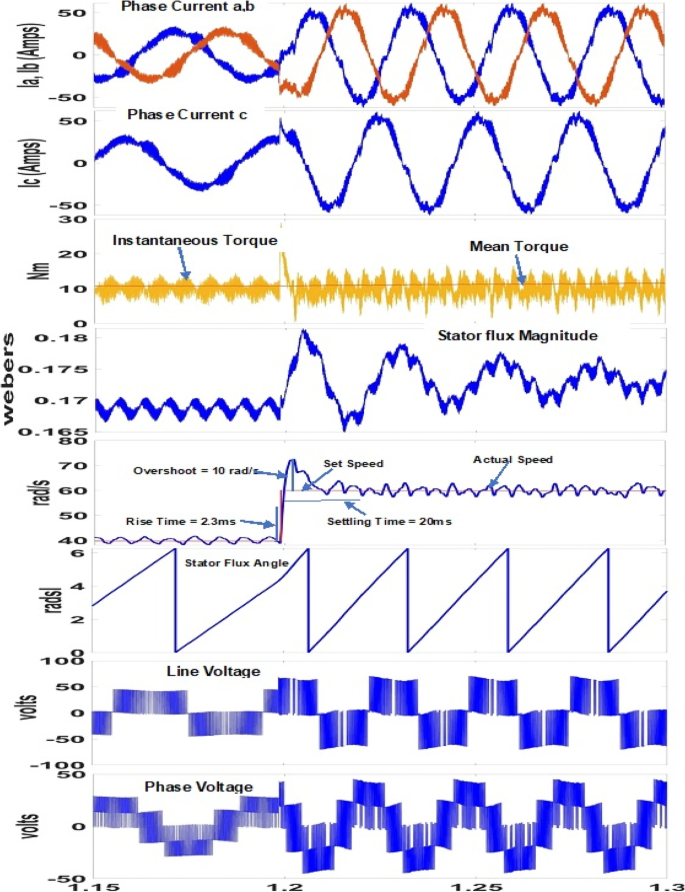

Fig. 18
figure 18

Transient and steady-state response captured at step 2 (40 to 60 rad/s) at 10-Nm load torque for the proposed method

Fig. 19
figure 19

Transient and steady-state response captured at step 3 (100 to 80 rad/s) at 10-Nm load torque for the proposed method

Table 5 Step response of the proposed methodology

Frequency response

The frequency response of torque dynamics of the proposed method has been computed from real-time data and presented in Fig. 20. Also, frequency responses of method 1 and method 2 has been compared over the wide frequency range. The harmonic content of torque ripple has been obtained by performing discrete Fourier transform (DFT) on torque data using (14). Further, the obtained harmonic content has been used to compute power spectrum density (PSD) of the frequency spectrum of torque data using Eq. (15).

$$X\left(K\right)=\sum_{n=0}^{N-1}X\left(n\right).{e}^{- \frac{j2\pi Kn}{N}}$$
(14)
$$PSD=\frac{1}{N}\sum_{K=0}^{N-1}{\left(X\left(K\right)\right)}^{2}$$
(15)

where K = 1,2, 3 N-1, is the order of harmonics;n = 1,2, 3 N-1, is the no. of samples;

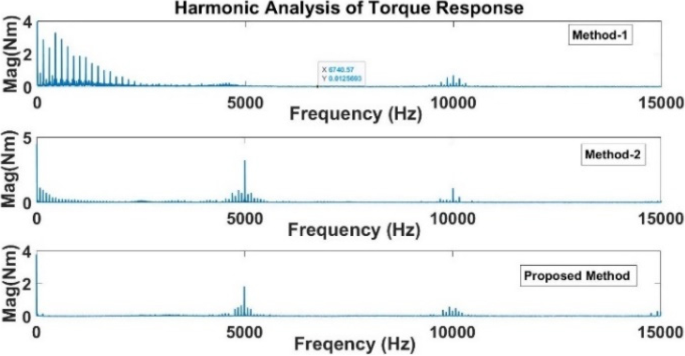

Fig. 20
figure 20

Frequency-spectrum of torque for method 1, method 2, and the proposed method torque for 2Nm, 40 rad/s

N = total no. of samples.

\(X\left(K\right)\) represents the frequency component of the observed signal, and K is the number of harmonics.\(X\left(K\right)\) for method 1 and method 2 and the proposed method has been shown in Fig. 20. The proposed method represented shows low lower order harmonic content. A comparative picture of PSD obtained from torque amplitudes is shown in Fig. 21. The proposed method shows a considerable reduction in the PSD value implying overall torque ripple reduction.

Fig. 21
figure 21

Power spectrum density of amplitude of torque for method 1, method 2, and proposed method

The statistical analysis of performance indices is done using integral absolute error (IAE), integral square error (ISE), integral time-weighted square error (ITSE), and integral time-weighted absolute error (ITAE) using Eqs. (16)–(19).

$$IAE={\int }_{0}^{\infty }\left|e\left(t\right)\right|dt$$
(16)
$$ISE={\int }_{0}^{\infty }{e\left(t\right)}^{2}dt$$
(17)
$$ISTE={\int }_{0}^{\infty }t*{e\left(t\right)}^{2}dt$$
(18)
$$IATE={\int }_{0}^{\infty }t*\left|e\left(t\right)\right|dt$$
(19)

The computed performance indices for speed response and torque response are given in Table 6.

Table 6 Performance indices of speed and torque response

The proposed method shows better performance in terms of lower values of statistical performance indices as compared to other methods.

Experimental results and discussions

Experimental setup has been developed to verify the simulation results of the proposed method. The set-up is shown in Fig. 22. The system is based on RT1104 /d-SPACE. The schematic diagram of the experimental set-up has been given in Fig. 23, in order to elaborate the d-SPACE based real-time control.

Fig. 22
figure 22

Experimental set-up for validating simulation results for all methods

Fig. 23
figure 23

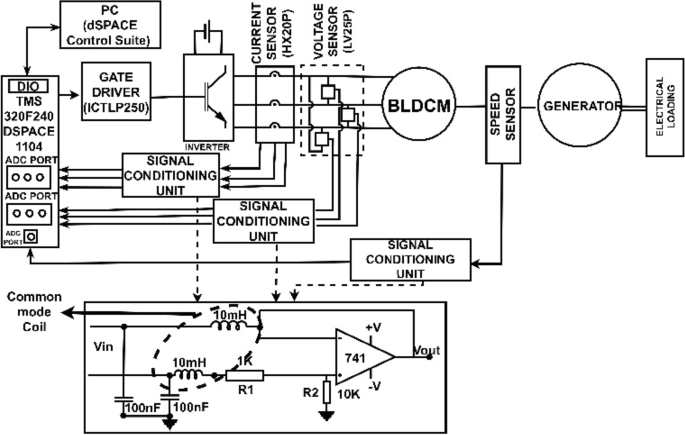

Schematic diagram of experimental set-up

The three-phase voltage, current, and motor speed are fed back with the help of ADC channels. The gating signals are obtained through the digital I/O board of dSPACE. The 1-kW PMBLDC motor has been taken for the experiment. It is coupled to a separately excited DC generator with the provision of electrical loading. All the control techniques have been implemented at step time 50 \(\upmu\)-seconds. This sampling time has been selected on account of minimum possible sampling time supported by the real-time simulator (dSPACE 1104) for real-time implementation of the proposed method. DC generator voltage is taken as actual speed of motor. The HX-20P Hall effect current transducers and the LV-25P voltage transducer are used to measure phase currents and line voltages, respectively. The experimental results are presented in Figs. 24, 25, and 26 corresponding to method 1, method 2, and proposed method. Figure 24 shows a large negative torque ripple marked by red circle. A slightly improved negative torque ripple is observed in Fig. 25. The result of proposed method shows no negative torque ripple as shown in Fig. 26.

Fig. 24
figure 24

Results of conventional method 1 for 2Nm, 40 rads/s. Current scale: 1 V = 2 Amp, Torque scale: 1 V = 4 Nm, T-avg. = 2.38Nm

Fig. 25
figure 25

Results of conventional method 2 for 2 Nm, 40 rads/s. Current scale: 1 V = 2 Amp, torque scale: 1 V = 4 Nm, T- avg. = 2.28Nm

Fig. 26
figure 26

Results of proposed method for 10Nm, 40 rads/s. Current scale:1 V = 10 Amp, torque scale: 1 V = 1 Nm, T-avg. = 10.6Nm

The Table 3 represents work of other papers [20], in which computational burden has not been discussed. However, the computational burden of proposed work has been obtained in terms of maximum memory allocation and maximum number of clock cycles. The maximum memory allocated on the DSPACE 1104 processor is 110 K Bytes, and number of clock cycles is 2.22 * 103. The clock frequency is 40 MHz. The other algorithms in Table 3 are evolutionary in nature that require multiple time (k-times) computation of objective function for multiple N-operating points in a single iteration. This makes the complexity of higher order expressed as big-O notation in order of O (N^k). The proposed algorithm has linear complexity as there is no computation for multiple generations or operating points in a single loop expressed as O (N).

The time dynamic parameters of simulation results as shown in Fig. 17 and that of experimental results shown in 30 and 31 have been compared in Table 7 (Figs. 27 and 28).

Table 7 Detailed comparison between simulation and experimental results
Fig. 27
figure 27

Results of proposed method for 10Nm, 40 rads/s. Current scale: 1 V = 10 Amp, torque scale: 1 V = 1 Nm, T-avg. = 10.3Nm

Fig. 28
figure 28

Results of proposed method for 10Nm, 40 rads/s. Stator flux magnitude scale: 1 milli volt = 0.77 milli weber, actual speed scale: 1 V = 1 rad/s

Conclusions

This paper presents a modified DTC technique for torque ripple reduction by combining advantages of SVPWM with adaptive nature of FLC. SVPWM-based DTC provides near sinusoidal phase current response as compared to square wave phase current of conventional DTC. This results in sinusoidal nature of commutating current with equal rate of rise and rate of fall at wide range of speed. This mitigates torque ripple to a great extent that is caused due to square wave nature of the commutating phase current. However, in SVPWM-based DTC, the bounding space vectors corresponding to a particular sector are selected according to the position of flux vector. The duration of bounding space vectors cannot be modulated. This feature is added by FLC. The FLC-based SVPWM-DTC modulates the space vector according to error and rate of change of error by categorizing them in seven membership functions. The proposed method is analyzed using simulation and validated through experimental data. A comparative analysis between conventional DTC and the proposed method establishes significant improvement in mitigation of torque ripple.
