Arching mechanism for large span flexible culverts with shallow soil covers
Journal of Engineering and Applied Science volume 71, Article number: 46 (2024)
Abstract
Soilsteel composite bridges (SSCBs) use the surrounding soil and the culvert’s flexible corrugated steel thin plates to support vertical loads above the culvert. Existing codes use empirical equations based on field measurements and fullscale tests for small and ordinary span SSCBs to estimate the arching process and how it distributes vertical stresses on the culvert walls. The empirical equations then compute the design straining actions. Recent developments in construction technology and urbanization have led to a significant increase in typical spans of SSCBs. This paper investigates large span SSCBs and the associated induced arching action using threedimensional finite element analysis (FEA). The study compares the FEA findings of straining actions for large span SSCB case studies to the calculations of valid design codes. The comparison demonstrates that existing codes fail to predict the real arching mechanism and, consequently, the resulting straining actions. In addition, the FEA results illustrate how the arching mechanism varies as the span changes. Arching action is typically positive for relatively small spans but becomes negative as the span increases. Finally, results prove that current codes cannot accurately predict real arching, leading to inappropriate design straining actions. For large span SSCBs, these codes require modifications for the arching factors and the profile aspect ratio factors.
Introduction
The corrugated metal flexible culverts’ first usage was for sewage and drainage design. They were deeply buried and had small diameters. With time, their development and utilization were to serve as pedestrian and vehicular underpasses with shallower covers and larger diameters. The ease and speed of installation, the inherent strength of corrugated steel, sustainability, and esthetics all contribute to the widespread usage of this style of culverts. They present a viable alternative to bridge infrastructure, which is a considerable contributor to greenhouse gas emissions because of the massive raw material and energy consumption during their whole life cycle [1].
Soilsteel composite bridge (SSCB) main characteristic is a unique method of providing the load bearing capacity as opposed to ordinary culverts. The surrounding soil for ordinary concrete, stone, and brick culverts is regarded only as a way of transmitting loads. However, for SSCBs, the surrounding soil plays a significant role in sustaining the loads with the culvert, known as soil structure interaction. Therefore, the arching mechanism takes place. The arching is the pressure or load transfer between the backfill soil layers above the culvert that arises from the culvert walls’ flexibility. As a result, the design of buried culverts entails identifying the best culvert crosssection and the surrounding soil properties [2].
Arching plays a prime role in SSCB performance. Arching may be positive or negative. Positive arching occurs when the backfilling soil around the culvert has the potential to disperse the load away from the culvert. That is because the majority of the load disperses across soil layers. Consequently, the induced normal forces in the culvert crosssection are less than in the case of no arching. Negative arching occurs when the culvert is stiffer than the backfilling soil, so more load transfers to the culvert. Hence, the induced normal forces increase. Thus, the arching mechanism must be wellestimated during the design of SSCBs.
Various countries have released design manuals/codes for SSCB design and construction specifications. These codes give empirical equations based on field and laboratory experiments for small and regular span SSCBs. In general, the design codes concentrate on two main design concepts. These are the geotechnical features of steel culvert construction, such as excavation, filling, cover depth, and installation, as well as the structural aspects, such as profile, corrugation depth, deformations, straining actions, and bolted connections.
Ring compression is the prime design requirement in some design codes. Ring compression force is the main straining action for designing a culvert with a small span and high soil cover. However, when the span increases, the soil cover decreases, or using deep corrugated crosssections, deformations and bending moments develop due to the cause of backfilling construction loads and traffic loads acting over the shallowly buried soil steel structure. Therefore, it is crucial to carefully evaluate the bending moments and displacements for large span SSCBs. Most available design manuals can assist in estimating the straining actions acting on the SSCB under specific situations. These manuals govern the minimum cover depth, backfill properties, corrugated steel plate properties, and culvert profile aspect ratio. However, to keep up with the rapid rise in the usage of large span SSCB, these design manuals need to be updated [3,4,5].
Many previous numerical studies investigated SSCBs in several topics, while they were for SSCBs with spans up to 18 m. Recently constructed SSCBs have spans larger than 18 m. The Ostróda SSCB in Poland has a 25.5 m span [3]. As well as the Shammal Bridge in UAE has a 32.66 m span [6]. Therefore, this paper investigates large span SSCBs with spans up to 32.66 m with deep corrugated steel plates and explores the effect of a large span on the induced arching mechanism. It presents a study on six large span field case studies using threedimensional finite element model analysis. FEA output soil movement contours investigate the effect of span increase on the induced arching mechanism. In addition, FEA results of induced straining actions due to backfilling loads are compared to the corresponding calculated values using two different design codes. The study highlights the factors for each code responsible for estimating the SSCB arching mechanism and influencing the accuracy of the calculated values. The study aims to check these codes’ validity for estimating the real arching and reasonable design straining actions for large span SSCBs.
Overview of the Canadian and Swedish design concepts for SSCBs
Nowadays, two of the most popular and used design codes for designing SSCBs are the Canadian highway bridge design code CHBDC [7] and the Swedish soilsteel composite bridges SDM [8]. Each code defines parameters and factors with some design limitations to calculate straining actions induced in corrugated steel plate crosssection. Herein, the paper highlights the approaches each code adopts and how these approaches could affect the prediction of large span SSCB performance.
First, the CHBDC [7] design provisions are based on the Ontario Highway Bridge Design Code (OHBDC) with some updates to be applicable across Canada [9]. CHBDC includes section #7 (buried structures), which presents the design of SSCB structures with spans ≥ 3 m, where the design is based on ultimate state principles. The design equations were derived firstly for shallow corrugated plates 152 × 51 mm (pitch by depth), and then they were adapted for application to all corrugation sizes [9]. The code defines a minimum cover height requirement to guarantee that the culvert design is influenced only by normal forces while neglecting bending moments [10]. The minimum permitted cover height is based on the culvert profile, effective span (D_{h}), and effective rise (D_{v}). However, the code allows shallower cover heights, not less than 0.6 m, with deep corrugated plates as long as considering bending moments in the design.
Maximum normal force (T_{D}) equation (Eq. 1) considers the factor (A_{f}) and the relative axial stiffness (C_{s}) into account for computing the maximum normal force acting on the culvert wall from the initial stage of construction. The A_{f} value depends on the effective span (D_{h}), effective rise (D_{v}), and cover height, where the code estimates the value of A_{f} for a range of 0.6 ≤ D_{h}/D_{v} ≤ 1.6. Then, the arching factor is defined as (1 − 0.1C_{s}) A_{f} and multiplied by half the applied soil load (0.5*W).
Meanwhile, the bending moment (M_{D}) equation (Eq. 2) has two portions, one calculating the moment generated by side backfilling (M_{1}) and the other calculating the moment generated by top backfilling (M_{B}). In general, side backfilling causes a higher bending moment, as adding additional side backfilling layers increases the bending moment. Then, adding the top backfilling layers reverses the induced bending moment direction and decreases the overall bending moment. Therefore, the design should consider the higher bending moment. The bending moment due to side backfilling (M_{1}) equation (Eq. 3) includes factors K_{M1} and R_{B}. K_{M1} is a function of the relative bending stiffness (N_{F}), while R_{B} is a function of the profile aspect ratio (D_{v}/2D_{h}).
Next, SDM [8] is also known as the PetterssonSundquist design method. SDM calculations are based on fundamental theories that were compared and calibrated with fullscale field tests [11]. SDM includes a set of limitations and assumptions concerning culvert profile geometry, backfilling soil type, and relative stiffness (λ_{f}) between the backfilling soil and the steel culvert (100 ≤ λ_{f} ≤ 50,000). Additionally, it specifies a minimum cover height of 0.5 m for road bridge culverts and 1 m for railway bridge culverts. Minimal cover aims to reduce the possibility of local failure under concentrated loads. The SDM design process considers normal forces and bending moments generated on corrugated steel plates for all corrugation types.
The SDM normal force equation (Eq. 4) has two portions: one for the normal force generated by side backfilling and one for the normal force generated by top backfilling. The SDM, unlike CHBDC, does not include the impact of the relative axial stiffness component in its equation. Also, it considers the arching effect (S_{ar}) only for the part calculating normal force due to top backfilling.
However, the SDM bending moment equation has two portions in the same manner as CHBDC. The bending moment due to side backfilling (M_{soil,k}) equation (Eq. 5) considers the factors f_{2,surr}, f_{1}, and f_{3}. f_{2,surr} is a function of the relative bending stiffness (λ_{f}), while f_{1} and f_{3} are functions in the profile aspect ratio (H/D).
In general, neither the CHBDC nor the SDM design approaches spell out the maximum span for SSCB. However, both codes specify limitations on the proposed equations’ parameters based on small and regular span SSCBs [5]. Table 1 summarizes a comparison between both codes regarding the limitations and the parameters used in calculating straining actions.
Methods
Finite element analysis (FEA) description
The author uses the multipurpose finite element program PLAXIS 3D [12] to study the behavior of large span SSCB. The FEA results are used to evaluate the effect of span on the induced arching mechanism. Then, they are compared to CHBDC and SDM calculations to check the capability of these codes to estimate reasonable design straining actions.

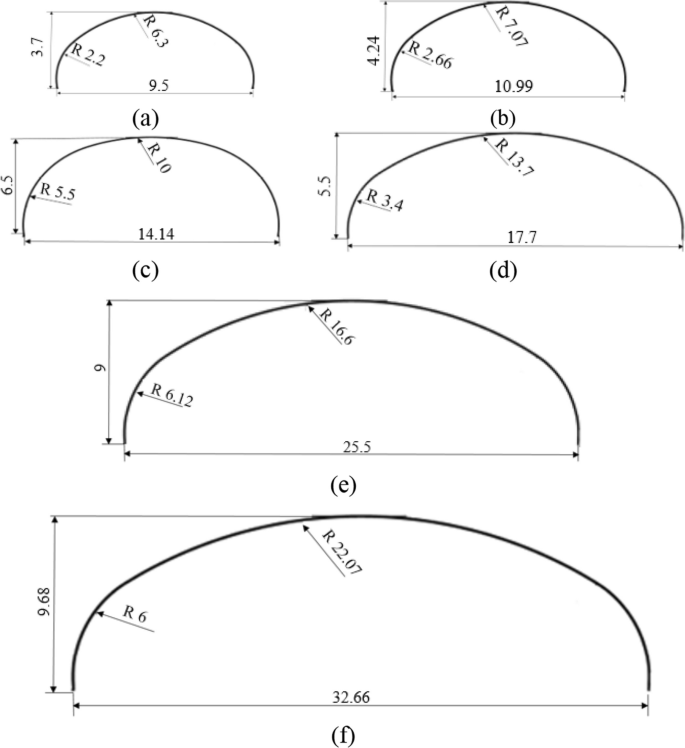

The study includes six SSCBs with spans between 9.5 and 32.66 m. The culverts are double radii open arched profiles with deep corrugated steel plates. Figure 1 shows their schematics with detailed dimensions. They have shallow cover heights, where the h/D equals 0.09 for all cases. In addition, Table 2 summarizes each culvert profile and crosssection data. The backfill soil for all SSCBs is assumed to be medium sand verged with silty sand layered each 0.3 m. The backfill properties are according to the values reported by Korusiewicz [13]. It has 50 MPa Young’s modulus, 18.54 kN/m^{3} dry density, and 35° friction angle.

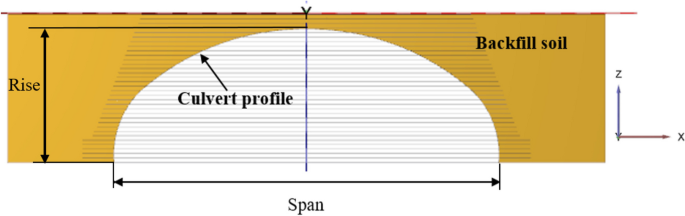

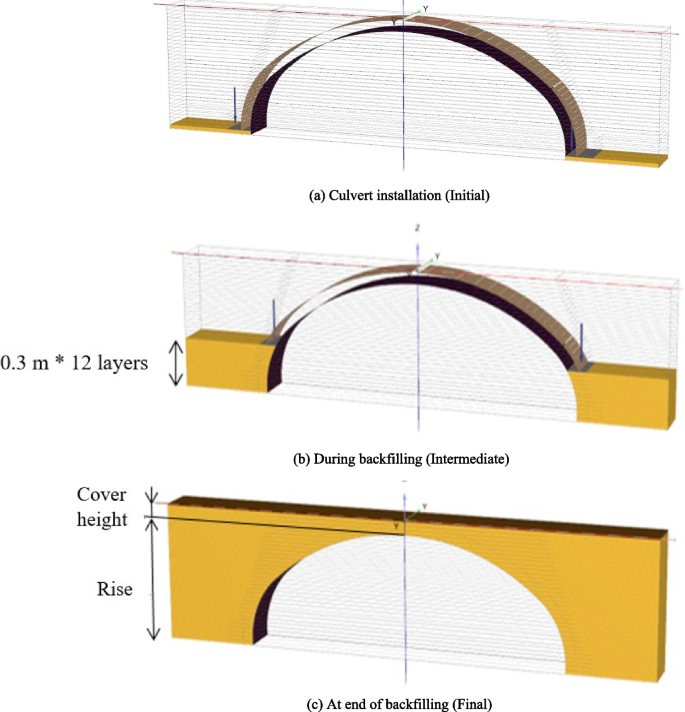

Figure 2 illustrates the finite element (FE) model used to simulate the investigated openarched SSCBs consisting of the culvert and the surrounding soil medium. The choice of the material models for the backfilling soil and the corrugated steel plates is based on previous research that specifies the appropriate models defined in FE simulation for the backfilling soil and corrugated steel plates. PLAXIS 3D library allows soil simulation using the hardening soil (HS) material model that can simulate the soil stressdependent stiffness considering the effect of compactioninduced loads from the soil to the culvert [14, 15]. On the other hand, the use of orthotropic plates for simulating corrugated steel plates was approved by previous research to provide reliable results [14, 16]. Using orthotropic elastoplastic plates allows for the reduction of the required number of elements in the FE model. They are a subset of anisotropic materials,their properties vary depending on the measurement direction. As a result, they have three planes/axes of symmetry and a poisons ratio of zero (ν_{equ.}). Their properties are calculated according to the method developed by Orod and Siavash [17]. Tables 3 and 4 summarize the values used in FEA for the HS backfilling soil model and the orthotropic steel plates, respectively.
The boundary conditions are fixed in both directions at the model base and horizontally fixed at the edges. The mesh size is medium for the whole SSCB FE model, and the mesh coarseness is refined for the culvert plates and the soil next to the culvert walls. The reason is to account for the close spacing between the backfilling soil model and the culvert model steel plates and to save time during analysis by minimizing the number of FE model elements.
Construction stages and compaction loads simulation
SSCB construction in situ is staged construction. The staged construction starts with installing the corrugated steel plate to form the culvert profile. That is followed by placing the compacted backfilling soil layers on both sides of the culvert equally to ensure contact between the plates and the soil.
PLAXIS 3D finite element program can simulate the construction stages through a series of phases. The model’s initial phase presents the state before construction (i.e., no geometry is active). Then, the model’s first phase presents the installation of the corrugated steel plates forming the culvert profile by activating the corrugated steel plates and their interfaces. Next, the following model phases present the soil backfilling stages by activating each backfilling layer with its accompanying compaction load through sequential phases till reaching the road level. The compaction load is simulated as vertical surface loading equal to 20 kN/m^{2} for side backfilling [18], then its value is reduced for the top layers of backfill until the ground level. Figure 3 presents a sample FEA model simulation of the backfilling stages with corresponding compaction loads.
Regarding the reported case studies, there is no information about groundwater onsite. Therefore, the water table is assumed to be below the foundation level.
FE model verification

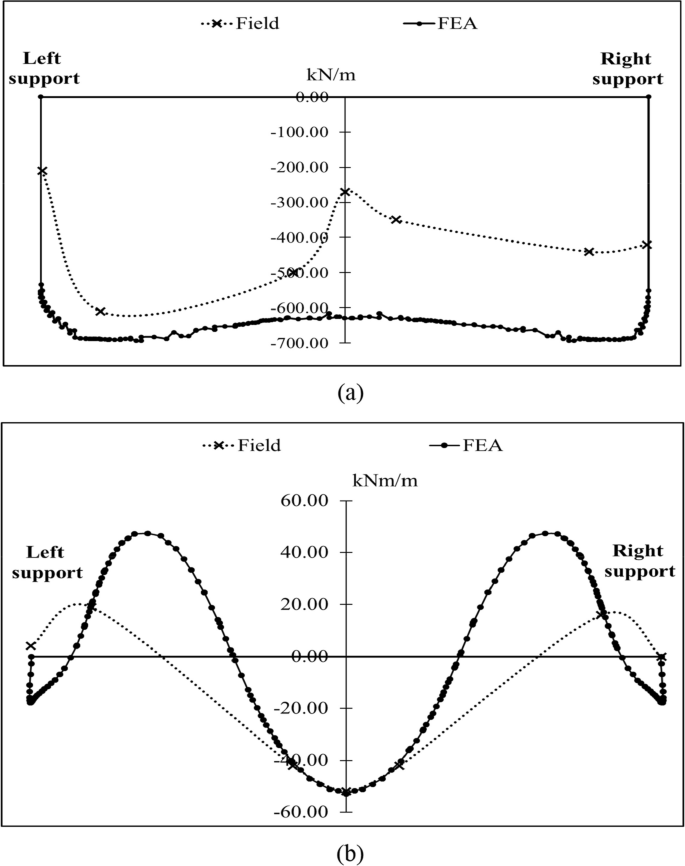

The Wildlife overpass SSCB field measurements are compared to the FEA results to verify the FE model. The Wildlife overpass has a 17.7 m span, a 5.5 m rise, and a 2 m cover height [13]. Figure 4 proves that the FEA results are reasonable compared to field measurements. However, the normal force values of FEA results are higher than field measurements. The reason can be that some measuring sensors suffered high temperatures in the field, which resulted in false readings, especially for measurements due to side backfilling. Korusiewicz mentioned that the measured normal forces changed erratically at different points [13]. Maximum field measurements for normal force and bending moment were recorded as − 610 kN/m and 52 kNm/m, respectively. Meanwhile, the FEA results for both straining actions are − 690 kN/m and 53 kNm/m.
Results and discussion
PLAXIS 3D models are calculated, and the results are used to investigate the effect of span increase on arching mechanism, deformations, and induced straining actions. Then, the FEA results are compared with the corresponding calculated values using available design codes.
Arching mechanism
The arching mechanism has a master role in transferring the loads to the culvert crosssection. As mentioned, an arching mechanism may be positive or negative depending on the relative stiffness between the backfilling soil and the culvert’s corrugated steel crosssection.
The arching mechanism can be presented numerically by the movement contours of the soil concerning the culvert. Therefore, Fig. 5 plots the soil movement contours generated by PLAXIS 3D output to illustrate the type of induced arching mechanism at the end of backfilling for the case studies. The figure clarifies that an increase in span greatly influences the arching mechanism type. It shows that for spans up to 10.99 m, the contours prove the occurrence of positive arching. Then, for larger spans, the arching is inverted to be negative. In addition, the soil wedge supported on the culvert walls expands as the span increases, which is the main reason that the straining actions increase significantly with the span increase.
Accordingly, the studied culverts are classified into two groups as follows: positive arching SSCBs (i.e., culverts with spans equal to 9.5 and 10.99 m) and negative arching SSCBs (i.e., culverts with spans equal to 14.14, 17.7, 25.5, and 32.66 m).
Deformations
Results show that the span increase and corresponding induced arching mechanism influence the maximum vertical deformations (U_{zmax}). The positive arching SSCBs maximum vertical deformations are 6.4 mm and 14 mm for spans 9.5 m and 10.99 m, respectively. The negative arching SSCBs maximum vertical deformations are 49 mm, 78 mm, 125 mm, and 275 for spans 14.14, 17.7, 25.5, and 32.66, respectively. Results prove that as the arching mechanism changes from positive to negative when the span changes from 10.99 to 14.14 m, the maximum culvert vertical deformation increases by 3.5 times (i.e., (U_{zmax})_{14.14}/(U_{zmax})_{10.99} = 49/14 = 3.5). In addition, maximum deformation results illustrate that the deformation value for span 32.66 m increased by 43 times more than that for span 9.5 m.
Regarding the design codes, the CHBDC states that any upward or downward deformations should not exceed 2% of the culvert rise. On the other hand, the SDM does not mention a vertical deformation limit. Thus, the maximum vertical deformation to rise ratio is computed for each culvert and compared with the CHBDC limit.

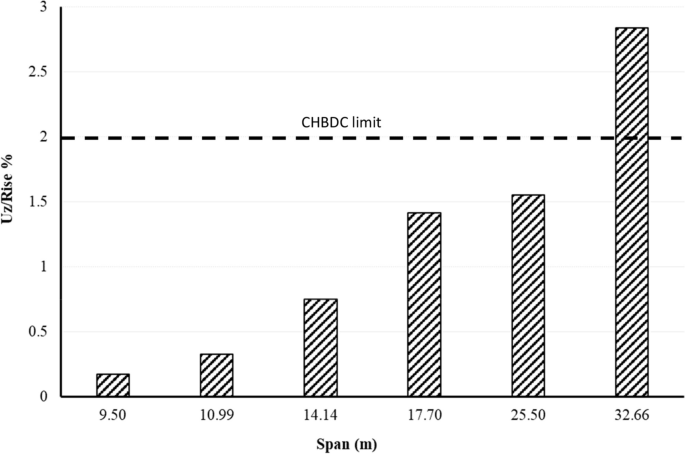

Figure 6 demonstrates each culvert maximum vertical deformation to rise ratio (U_{zmax}/H). The deformation ratios change from 0.17 to 2.84% with the increase in span. The figure shows that the maximum vertical deformation to rise ratio for span 32.66 m exceeds the CHBDC limit. Therefore, large span SSCBs with negative arching should be carefully monitored during construction to avoid excessive and undesirable deformations.
Straining actions

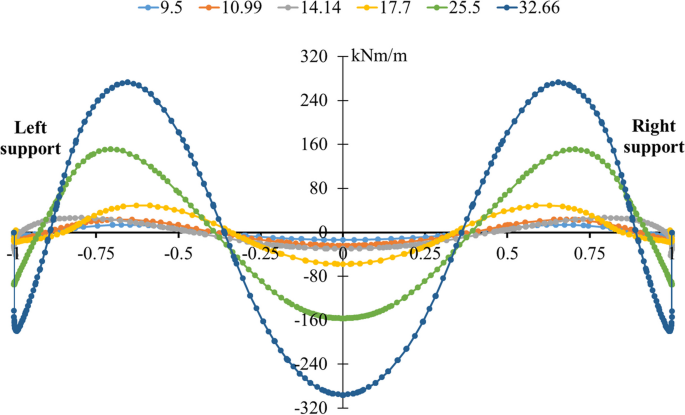

The culvert crosssection is subjected to different straining actions. The two main straining actions are the normal force and the bending moment induced about the crosssection strong axis (circumferential direction). The normal force maximum value occurs at the end of backfilling. On the other hand, the maximum bending moment value occurs when the backfilling layers reach the crown point. Figures 7 and 8 plot the FEA results due to dead loads only (backfill soil load) for normal force and bending moment distribution along the culvert’s span, respectively, for both the positive and negative arching SSCBs. The figures represent the culvert length by unity for all case studies to plot different span culvert results. Both figures confirm that span and corresponding induced arching mechanism type greatly influence the induced straining actions, as they are directly proportional to the span increase. Besides, Fig. 7 shows that the normal forces for positive arching SSCBs slightly vary (i.e., spans 9.5 and 10.99 m). However, for negative arching SSCBs, there is a significant change in the values of the normal force by span increase. That is because of the soil wedge increase supported on the culvert wall.
Regarding the location of maximum straining action, Fig. 7 clarifies that the maximum normal force location does not vary as the span increases. It occurs within a quarter of the span on both sides near the supports. Similarly, Fig. 8 illustrates that for the different spans, maximum bending moments frequently occur at the crown and shoulders, with about the same values but in opposing directions.
FEA results vs design codes calculated values
Existing codes propose equations based on small and ordinary span SSCBs. Hence, the CHBDC and SDM are used to calculate the straining actions acting on the corrugated steel plates for both the positive and negative arching SSCBs studied cases. Then, calculated values are compared with the corresponding FEA results. Figures 9 and 10 plot the normal forces and bending moments, respectively, calculated by both codes and the maximum results from FEA. A general conclusion from both curves is that calculated values are not mostly compatible (overestimated or underestimated) with FEA results for large span culverts.
Since the span increase has a direct influence on the arching mechanism type. Therefore, overestimated/underestimated calculated straining actions are a reason for the failure of codes to estimate the true arching mechanism that takes place between backfilling soil and the large span culvert. As a result, they estimate that the culvert supports either more or less of the original applied loads. In addition, some codes’ equations do not account for the impact of relative stiffness between the backfilling soil and the corrugated steel plates, which consequently affects the results. Therefore, each code equations are thoroughly investigated to identify their imperfections regarding large span SSCB design.
Normal forces codes equations

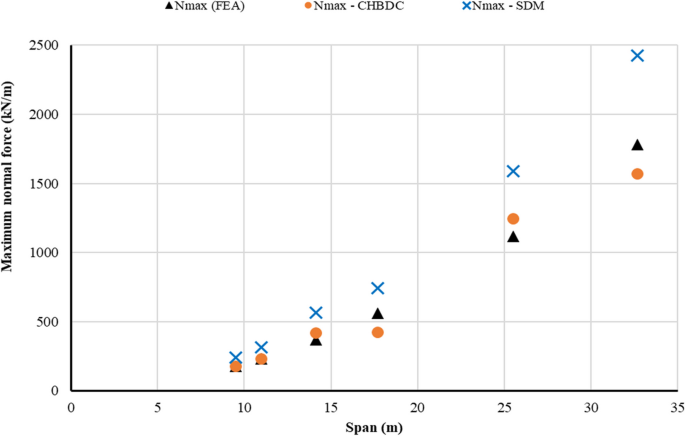

Regarding normal forces, Fig. 9 illustrates that normal forces calculated by CHBDC are always less than those calculated by SDM. In addition, CHBDC provides mostly wellestimated normal forces compared to FEA results. The CHBDC calculations range between 0.75 and 1.14 times the FEA results. On the contrary, SDM calculated values are always more than FEA results, ranging between 1.32 and 1.54 times the FEA results.
Even that Fig. 9 shows that CHBDC normal force equation sometimes can estimate close values to FEA results, the figure also illustrates that the same equation cannot estimate appropriate values for some cases. Calculated normal forces for positive arching SSCBs are compatible with FEA results, while for negative arching SSCBs, calculated values vary from FEA results. Therefore, the discussion will highlight the arching factor defined by the code’s equation. CHBDC presents the arching factor by the following Eq. (1 − 0.1C_{s}) A_{f}. This code assumes that the arching effect starts from the beginning of the backfilling stages, as it is multiplied by the whole soil load surrounding the culvert.

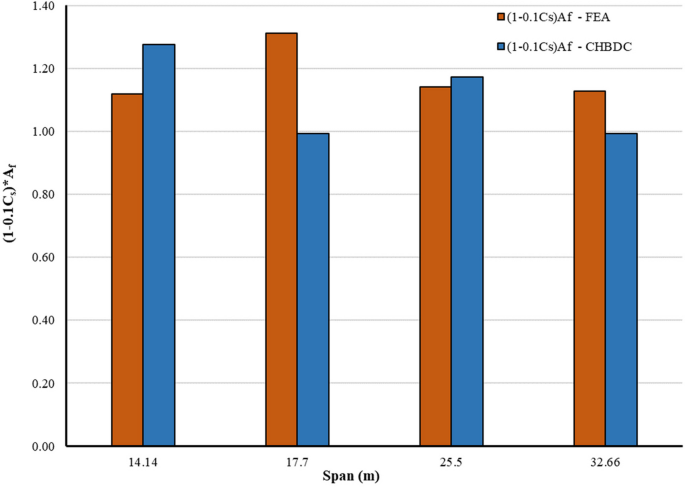

Figure 11 plots the arching factor calculated by CHBDC and recalculated from FEA results for the negative arching SSCBs. The figure shows that the code estimated arching factor is less accurate, especially when using a small corrugated steel crosssection (i.e., 381*140*7 mm). For example, for the culvert with a span of 17.7 m and corrugated plates 381*140*7 mm, the arching factor calculated by the code is 25% less than that recalculated from FEA results. Also, for the culvert with a span of 32.66 m and corrugated plates 500*237*12, the arching factor calculated by the code is 14% less than the recalculated value from FEA results. This notable difference between the arching factor calculated by CHBDC and recalculated from FEA results for both mentioned spans can be due to A_{f} curves, as they are limited to 0.6 ≤ D_{h}/D_{v} ≤ 1.6 only, where the D_{h}/D_{v} for spans 17.7 and 32.66 are 1.6 and 1.687, respectively. Therefore, the CHBDC should modify the arching factor equation/parameters for large span culverts.
Next, the SDM design code presents the arching factor S_{ar}, which is a function of the cover soil friction angle, cover height, and culvert span. SDM normal force equation has two portions, one to calculate the normal force due to side backfilling and the other for that due to top backfilling. The S_{ar} factor is considered only for the portion calculating normal force due to top backfilling. Figure 12 plots the calculated and resulting normal forces divided according to that induced due to side backfilling only and top backfilling only. That is to find in which portion the problem of overestimating the calculated normal force occurs. The figure clarifies that the SDM overestimates the normal force due to side backfilling load where the values reach up to 90% more than FEA results that increases the total estimated normal force due to dead load. On the other hand, the calculated values due to top backfilling are wellestimated compared to FEA results. Therefore, the SDM should modify the normal force equation due to side backfilling for large span culverts by considering the arching factor effect and the relative axial stiffness effect between soil and steel plates.
Bending moments codes equations
Regarding bending moments, as the maximum value occurs when backfilling reaches the crown level, therefore the equation portion evaluated in both codes is only concerned with calculating moments induced by side backfilling. The study considers the absolute bending moment because steel has the same bending stiffness in both directions, so the moment direction does not influence it.
Figure 10 illustrates that both codes’ calculated values vary between wellestimated and overestimated values. CHBDC overestimated values reach up to 48% more than FEA results, while SDM overestimated values reach up to 83% more than FEA results.
Regarding the CHBDC, the bending moment equation depends on two main factors K_{M1} and R_{B}. K_{M1} is a function of the relative bending stiffness between the soil and the steel plates (N_{F}), while R_{B} is a function of profile aspect ratio (D_{v}/2D_{h}). Table 5 summarizes the D_{v}/2D_{h} for each culvert, the corresponding calculated R_{B}, and the ratio between the code calculated values and FEA results. The table shows that for culverts with profile aspect ratios 0.2 ≤ D_{v}/2D_{h} ≤ 0.35, the calculated bending moments are significantly higher than FEA results, where the difference is 48% for the culvert with a span of 32.66 m. For culverts with aspect ratios 0.35 < D_{v}/2D_{h} ≤ 0.5, the calculated bending moment values are more than FEA results with an acceptable difference of less than 10%. Figure 13 plots the R_{B} calculated by the code and the recalculated from FEA results. The figure illustrates that the R_{B} equation for 0.2 ≤ D_{v}/2D_{h} ≤ 0.35 should be modified to reduce the calculated R_{B} value. For the case study with a 32.66 m span and 0.3 profile aspect ratio, the R_{B} value shall be reduced by 33%.

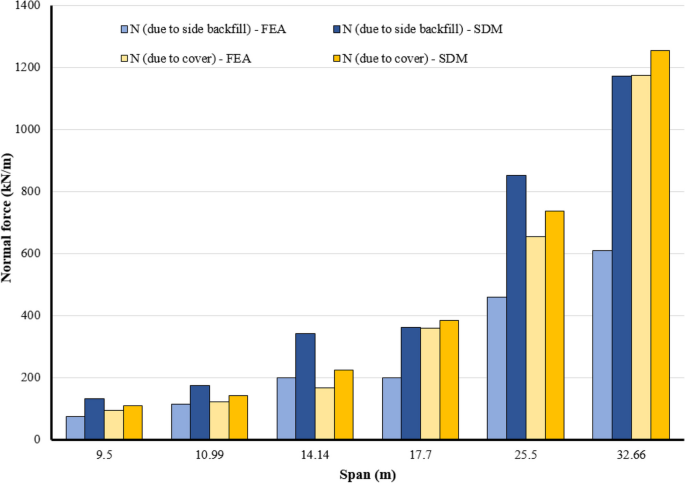

On the other hand, the SDM equation calculates bending moment due to side backfilling depending on three main factors f_{2,surr}, f_{1}, and f_{3}, where f_{2,surr} is a function of the relative stiffness (λ_{f}) between the soil and the steel plates. The other two factors are function of the profile aspect ratio (H/D). Generally, the SDM equation is similar to that CHBDC equation but multiplied by an additional factor f_{3}. Table 6 summarizes the H/D for each culvert, the corresponding calculated factors (f_{1} and f_{3}), and the ratio between code calculated values and FEA results. The code equation has a problem in estimating the arching mechanism for large span culverts with profile aspect ratios (H/D) greater than or equal to 0.35. The overestimated calculated values reached up to 83% of the FEA results. The product of aspect ratio factors (f_{1}*f_{3}) is recalculated from FEA results for each SSCB. Then, they are plotted versus the code calculated values, as shown in Fig. 14. The figure clarifies that for the case study with a span of 14.14 m and H/D = 0.46, the factors shall be reduced by 27%. Therefore, f_{1} and f_{3} equations require modifications for large span SSCBs with corresponding rise to span ratios equal to or greater than 0.35.

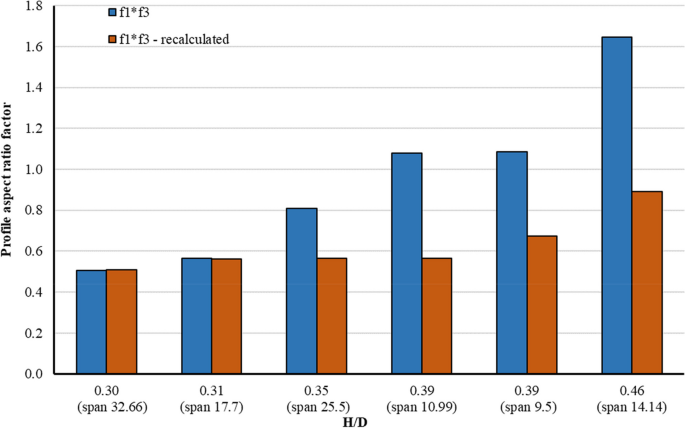

As a result of the prior discussion, codes’ equations that calculate arching factors and profile aspect ratio factors should be modified for large span culverts. The codes should consider the arching impact from the beginning of backfilling and the relative stiffness between backfilling soil and corrugated steel plates (i.e., axial stiffness and bending stiffness). Hence, the culvert and the backfilling soil interact during the construction stages.
Conclusions
Recent developments in construction technology and urbanization have led to a significant increase in typical spans of SSCBs. Therefore, this paper illustrates a numerical analysis study that explores the effect of large spans on the arching mechanisms around the SSCB. Finite element analysis demonstrates the limitations of the existing calculation methods in CHBDC and SDM.
The study investigates six SSCB field case studies using PLAXIS 3D. The SSCBs have open arched culverts with spans 9.5 m up to 32.66 m. Firstly, FEA results for the Wildlife overpass [13] are verified using field measurements. Then, the study evaluates the FEA results for the associated soil movement representing the arching mechanism and the induced vertical deformations. Next, normal forces and bending moments FEA results are displayed. Lastly, using CHBDC and SDM, normal forces and bending moments are calculated and compared to FEA results. The investigation yields the following conclusions:

The arching mechanism is significantly affected by span and profile aspect ratio. For case studies with spans of 9.5 and 10.99 m, the FEA soil movement contours prove that positive arching occurs. On the other hand, the FEA soil movement contours show that negative arching takes place for larger spans. Moreover, the contours show that the area of the supported soil wedge is significantly affected by the profile aspect ratio and the span.

As the span increases and negative arching occurs, the maximum vertical deformation relative to the culvert rise ratio increases significantly. In the case of negative arching SSCB with a span of 32.66 m, for example, the (U_{zmax}/rise) ratio is 2.84%, which exceeds the CHBDC limit (2%). As a result, it is crucial to monitor large span culverts for deformations during construction to avoid any undesired deformations.

Induced straining actions are significantly affected by span since their values increase as span increases.

FEA results prove that normal forces for positive arching SSCBs slightly vary with the change in span. On the contrary, for negative arching SSCBs, there is a significant change in the values of the normal forces by span increase. That is because of the soil wedge increase supported on the culvert wall.

The calculated normal forces by CHBDC for large span culverts fluctuate between wellestimated for positive arching SSCBs and far estimated in case of negative arching SSCBs. The explanation is that the CHBDC arching factor equation cannot present the real arching mechanism. In addition, the A_{f} factor curves are limited to 0.6 ≤ D_{h}/D_{v} ≤ 1.6 only, while for spans 17.7 and 32.66 m the D_{h}/D_{v} ≥ 1.6. On the other hand, SDM always overestimates the calculated normal forces. The reason is that the SDM equation neglects the effect of relative axial stiffness between the backfilling soil and the corrugated steel plates. Also, it ignores the arching influence in the equation portion calculating normal force due to side backfilling. Consequently, the calculated normal forces due to side backfilling exceed the FEA results by ratios up to 90%, reflected in the total calculated normal force value.

Both codes cannot accurately estimate the maximum induced bending moment due to side backfilling of some investigated case studies. The reason is common for both codes, which is the improper proposed equations for calculating the profile aspect ratio factors for large span culverts. This results in overestimated calculated bending moments up to 48% for CHBDC and 83% for the SDM.

For large span SSCBs, the CHBDC and SDM equations should be modified to capture their actual performance and offer wellestimated straining actions for their design.
