The effectiveness of geothermal systems in cooling residential buildings: a case study of a residential building in Alexandria, Egypt

Abstract

The urbanization of cities, the corroding of green areas, and the increasing demand for electric energy lead to the formation of heat islands in cities and the appearance of the global climate change phenomenon.

Therefore, it was necessary to resort to the use of renewable energy sources, such as geothermal energy, to be used in different applications, as it can be used to cool buildings in cities during the summer.

This research deals with the benefits of using geothermal energy systems, their different types, and the possibility of their application in Egypt. Also discussing the effectiveness of the vertical closed geothermal system in residential buildings in Alexandria Governorate in Egypt to reach an answer to a question.

The effectiveness of the geothermal energy system in residential buildings is to reduce the problem of rising temperatures, energy consumption for cooling, and carbon emissions and thus reduce the problem of the formation of heat islands in cities and the appearance of the global climate change phenomenon and reaching a sustainable, environmentally friendly building that achieves thermal comfort for humans through the use of a simulation program called TRNSYS-17, through which the current situation of the building was compared and the addition of a vertical closed geothermal system was assumed, the extent of its effectiveness was compared in the whole building, and the cost of a vertical closed geothermal system and a traditional air conditioning system (HVAC) in a building was compared (case study).

Hence, the efficiency of the vertical closed geothermal system appeared to reduce electric energy consumption and carbon emissions in the whole building at Alexandria in Egypt, especially the ground floor, which reached thermal comfort for humans and worked to reduce electricity consumption and carbon emissions by up to 22.93% in the building as a whole.

Introduction

Most countries around the world are targeting “renewable sources” as a future governmental initiative, especially developed countries, to reduce energy consumption and carbon emissions to limit the increase in global temperatures caused by the intensity of human activity, the absence of vegetation, the abundance of impermeable surfaces in cities, and increased energy consumption for cooling and heating [1], which causes an increase in the effects of both urban heat islands in cities (UHI), global warming, and global climate change. Therefore, climate change and energy supply are considered the two biggest challenges facing the world today [2].

Since one of the main reasons for the increase in energy consumption in Middle Eastern countries is cooling buildings due to population growth, industrialization, and the hot climate, more than a third of the energy consumed in buildings is spent on cooling systems [3]. So, it was necessary to turn to renewable energy sources such as solar energy, wind energy, and geothermal energy to provide energy without depleting traditional energy sources and without any negative impact on the environment at the lowest costs.

Geothermal systems in buildings are especially characterized by their many long-term environmental and economic benefits compared to other renewable energy sources, so the use of geothermal energy systems to heat and cool buildings has been evaluated and applied in many countries, such as the USA, the UK, the Kingdom of Saudi Arabia, and India, without testing it widely in countries with tropical and subtropical climates, Middle Eastern countries, and Egypt.

Although these countries are facing many problems related to energy efficiency, there is an increasing demand for it, and there is an increase in carbon and heat gas emissions. For example, in Egypt, we notice an increase in the rate of electrical energy consumption to cool buildings, which is responsible for 26% of the total consumption of electrical energy in buildings and 62% of the total consumption of electricity in cities [4].

However, renewable energy sources have not been sufficiently exploited, and only a few researchers have been interested in exploiting it in cooling buildings in this country.

Also, the use of geothermal energy in heating commercial buildings was investigated, and the environmental and economic efficiency of it was studied, but no attention was paid to residential buildings, although it is considered the second most important human need and is considered one of the most energy-consuming and carbon-emitting sectors in cities [5]. They also contribute to forming the largest part of the city’s area. The amount of carbon emissions resulting from it is large compared to the rest of the sectors.

Hence, the research aims to study the effectiveness of applying thermal energy systems to cool residential buildings in Egypt, evaluate it environmentally and economically, and propose it as a practical solution. It contributes to solving environmental problems resulting from climate change, heat islands, and increasing energy consumption for cooling in residential buildings by evaluating the effectiveness of the vertical closed geothermal system and determining its impact on reducing electrical energy consumption, reducing carbon emissions, and achieving thermal comfort for humans to ensure its efficiency in reducing the island effect and thermal insulation in residential buildings in Egypt.

This is done by selecting an existing residential building in Egypt, analyzing its current situation using the simulation program TRNSYS-17 and comparing the current situation with the assumption of adding a vertical closed geothermal system to the building in order to determine which is more efficient in reducing electric energy consumption, reducing carbon emissions, and accessing the thermal comfort of the person in the building and to determine if this system is useful and economical for its use in Egypt or if it is necessary to resort to other better solutions. Then, it evaluates its role in reducing the negative effects of heat islands and climate change on the Egyptian residential environment.

Geothermal systems in buildings

There are many geothermal systems that can be applied to heat and cool buildings, which differ from each other in design, implementation method, drilling method, pipe thickness, etc., so they can be divided into two different categories: surface geothermal systems with open loops and surface geothermal systems with closed loops (vertical, horizontal, submerged in a pond or lake, with geothermal substrates) [6], which is considered the most common system because it is the easiest and cheapest ground loop to install [6]. There is a new system that was issued recently, and it is a combination of renewable energy and geothermal energy and is considered one of the most efficient systems [7], as shown in Table 1.

Table 1 Different types of geothermal systems

Benefits of using surface geothermal systems in buildings

According to previous studies, the use of geothermal systems in buildings provides many benefits at all environmental, economic, health, psychological, social, and esthetic levels that accrue to the user, the city, and thus the world as a whole [8]. It saves energy and reduces pollution. In Table 2, there is a brief explanation of those benefits and their impact on all levels [9].

Table 2 Benefits of using surface geothermal systems in buildings and their impact on all levels

Therefore, the research will study the effectiveness of this system and its application in Egypt to benefit from these environmental, health, and economic benefits by identifying the potential of geothermal energy in Egypt and applying one of its systems there.

The potential of geothermal energy in Egypt

As a result of many studies and analyses that were carried out in Egypt by many researchers, the various geothermal energy resources in it were evaluated through the analysis based on geographic information systems for many places and the analysis of the geothermal characteristics of the Bahariya Oasis, the Western Desert, and the study of geothermal energy around the Red Sea. In addition, the Gulf of Suez uses magnetic methods [6].

Egypt appeared to have a relatively low estimated content of about 251 billion US dollars, consisting of 15 hot springs and 52 thermal wells located along the Gulf of Suez, the Red Sea, and the Western Desert, which differ from each other in surface temperatures ranging between 23 and 71 °C in hot springs and 35 and 50 °C in thermal wells, as shown in Fig. 1.

Fig. 1

Heat content classification of geothermal energy resources in Egypt. Source: A discussion on the potential use of shallow geothermal energy for cooling in Egypt, 2019

Volumetric estimates through the HYDROTHERM model showed that the reservoir with a temperature of 170 °C and a depth of more than 1 km could generate 28.34 MW of electrical energy.

The entire Sinai over a period of 35 years [15] and temperature distributions of 90–180 °C were determined at a depth of 2–3 km with a preference for the use of open system or closed system submerged geothermal energy along the Gulf of Suez and the Red Sea [16].

This indicates the possibility of exploiting it for energy generation. For example, in the Bath of Pharaoh (Gulf of Suez), the deep temperature in it can be exploited in energy generation (over approximately 30 years of production) based on the results that indicate that the temperature in a thermal reservoir with a depth of 500 m is 130 °C; then, it can be classified, as shown in Fig. 1.

Hence, the geothermal energy resources in Egypt can be classified as shown in Table 3.

Table 3 Heat content classification of geothermal energy resources in Egypt

A study of the possibility of exploiting geothermal energy in buildings in Egypt

Average ground temperatures in Egypt range from 15° to 25° at a depth ranging between 20 and 50 m, and they can be used either for direct cooling or to reduce the use of electric air conditioning units used in commercial and domestic buildings [18].

Recently, a new trend has appeared at the governmental and commercial levels to use geothermal energy to solve the growing problem of air conditioning in buildings in cities because of the following:

• a. Reduces electricity consumption for air conditioners as it consumes approximately 100 MWh per 1 °C when the atmosphere temperature rises above 35 °C [19]

• b. It limits the heat waves in the summer, especially the long ones, such as those in Alexandria, where millions of people need air conditioning, thus forming a large urban heat island in it [17]

• c. Reduces pollution and improves air quality in the heat islands, where geothermal air conditioning can provide electricity better and more efficiently in Alexandria while reducing the burning of fossil fuels

Since Egypt is the most populated country in the Middle East and has relatively low reserves of oil and gas, it provides an opportunity to invest in renewable energy, especially in the production of geothermal energy, and since the majority of the country’s energy is consumed by industries (47%) and buildings (20%).

Therefore, geothermal energy is an alternative energy option for Egypt. Moreover, there is a large land area (94% of desert land).

Some countries will explore geothermal energy resources as an alternative source of energy in the future, so we must think in an innovative way to develop an environmentally friendly building that reduces energy consumption, reduces heat islands, faces global warming and climate change, and limits the depletion of non-renewable energy sources by using geothermal energy in buildings. This is in order to reach a sustainable building that achieves thermal comfort for humans, through many data sets, studies, and analyses, as shown in Fig. 2.

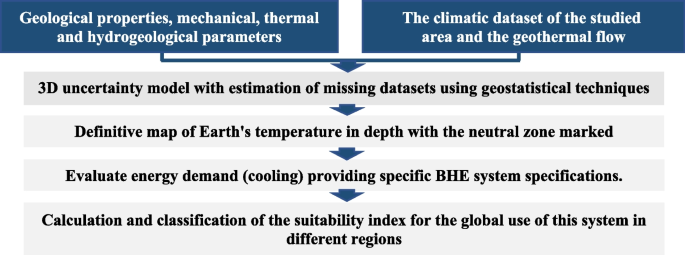

Fig. 2

Shows the data, studies and analyzes that must be considered to achieve the maximum benefit from geothermal energy systems to achieve thermal comfort in buildings

These applications still require qualified people and technologies in the fields of geothermal energy investigation, design of power generation, cooling and heating systems in buildings, management of geothermal energy projects, monitoring systems that will be allocated to the Egyptian market, raising awareness in society, and decision-making about geothermal resources.

The population density in Egypt is concentrated on the banks of the Nile, especially in Cairo and the Delta, which makes these areas more energy-consuming and carbon-emitting.

Therefore, it is preferable to use a vertical closed geothermal system due to the lack of sufficient spaces to establish horizontal thermal energy systems and the lack of energy reservoirs in all regions. So, I will choose a vertical closed-loop geothermal system on the North Coast for application in this study.

Methods

The methodology is a simulation tool to study the effectiveness of applying thermal energy systems to cool residential buildings in Egypt, with the purpose of evaluating it environmentally and economically and determining its effect on reducing electrical energy consumption, reducing carbon emissions, and achieving human thermal comfort and, at the lowest cost, ensure its efficiency in reducing the island effect in Alexandria, Egypt.

The methodology used in this research was explained and clarified, and the stages that the research went through were identified, as shown in Table 4, and in it, the vertical closed geothermal system was chosen to be used in this study because it is considered the most effective and cheapest system among all geothermal systems, as shown in Fig. 3. It consists of a traditional distribution system inside the building, a ground heat pump, and vertical closed ground loops, as shown in Fig. 4, and the TRNSYS-17 software as a simulation was chosen to be used in this study to measure the thermal loads and electricity consumption inside the case study.

Table 4 Stages of evaluating geothermal energy systems based on an applied case

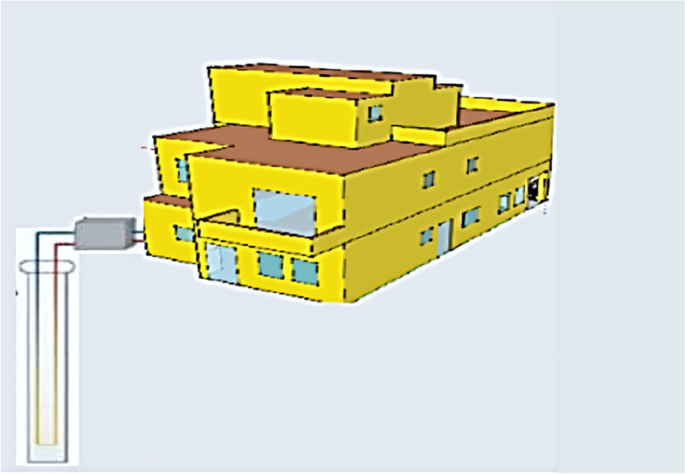

Fig. 3

The geothermal system add to building. Source: SKETCH UP-2014 program

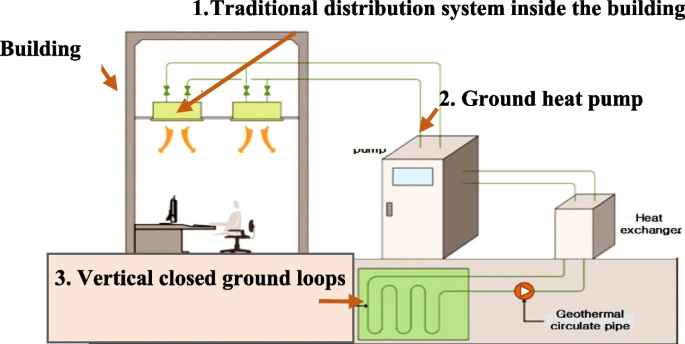

Fig. 4

The type of geothermal system chosen. Source: SKETCH UP-2014 program

The first stage (experimental stage)

In this study, the study area was selected, the building geometry of the current situation was determined, and the building (study case) was drawn on a program SKETCH UP-2014 program. What happened at this stage can be explained by the following points.

Choose a case study area

According to previous studies and analyses in terms of population [20] and energy consumption [21] for each governorate, as shown in Figs. 5 and 6, Alexandria, Egypt, was chosen as a study area because it is considered one of the most populous governorates in Egypt with population density and electricity consumption, and it has a relatively low percentage of green spaces and is more attractive to the population at the level of the rest of the governorates.

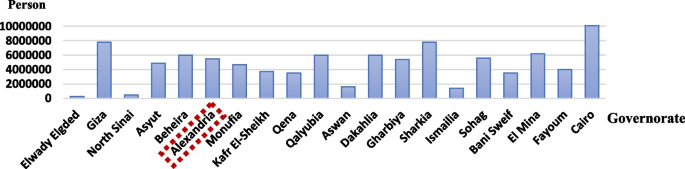

Fig. 5

Shows the population of each governorate of the Arab Republic of Egypt. Source: The Central Agency for Public Mobilization and Statistics in Egypt, 2023

Fig. 6

Shows the consumption of electricity kilowatt-hours/mon Building geometry. Source: Ministry of Electricity and Energy website, calculate consumption in February 2021

Therefore, it is one of the most appropriate governorates to determine the impact of geothermal energy systems on the formation of heat islands in cities and human thermal comfort.

The building geometry of the current situation was determined

A traditional, two-story residential building located in the fifth settlement in Cairo, Egypt, was chosen randomly to be simulated in this research as shown in Fig. 7. The design of the building is shown in Fig. 8.

Fig. 7

The case study design

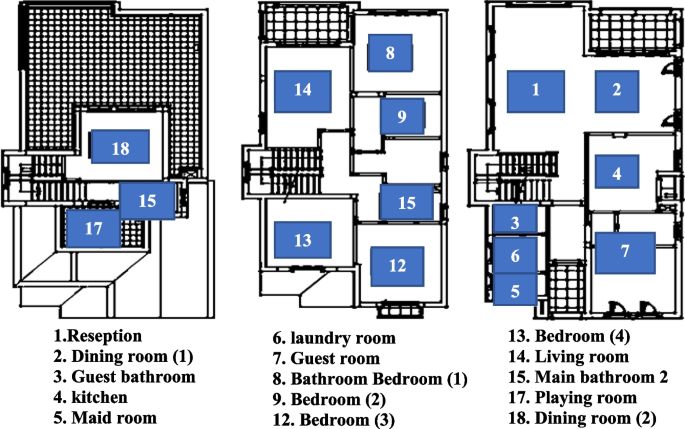

Fig. 8

The case study design and components

The building consists of a ground floor, a first floor, and a roof. It accommodates a large family consisting of six members and two workers, as shown in Fig. 6 and described in Table 5. This building, like most of the buildings located in Cairo, has an HVAC system used to cool the building during the hot seasons, which almost takes place between March and October.

Table 5 Case study description

The second stage (monitoring stage)

At this stage, data and information about the case study are collected, the modeling parameters for the current situation and the VCGS system are determined, and they are set in the program TRNSYS-17, to determine and analyze the current status of the building and when adding a geothermal system to each floor in terms of a thermal analysis of the current situation and its thermal loads.

Case study simulation

The TRNSYS-17 software was used as a simulation tool in this research to measure the cooling load inside the building before and after using the vertical closed geothermal system. A series of simulations were conducted to capture the effect of the vertical closed geothermal system on the building’s heat, energy consumption, and carbon emissions reduction during the year, especially during the peak period.

A 3D model for the case study was built as a primary stage using the Sketch Up software, as shown in Fig. 9. This model was imported into the TRNSYS software for simulation.

Fig. 9

The case study modeling on Sketch Up software

Modeling parameters

There were some parameters taken into consideration during the modeling process that affected the simulation results. All the modeling parameters were summarized and presented in Tables 6, 7 and 8.

Table 6 Modeling parameters in building envelop and layers

Table 7 Physiothermal properties of wall layers in the case of the study

Table 8 Physiothermal properties of windows

There are many factors affecting the internal thermal loads of the building, such as users, indoor lighting, and the heat gain from operating equipment and devices; these factors contributed to the increases in the thermal loads inside the indoor spaces. According to the ASHRAE Guide [22], which is presented in Table 9, the thermal loads were calculated in terms of occupancy, lighting features, and electronic devices.

Table 9 Internal earning transactions according to the ASHRAE Guide (2013) [22]

Taking into consideration the thermostat set point for the HVAC system, it is assumed to be 24 °C for optimal cooling, with an acceptable range of 23–26 °C.

The parameters set for VCGS system

The piping of a vertical closed geothermal system has been excavated and designed, as shown in Table 10.

Table 10 The parameters set for VCGS system

Calculation model

Temperatures and thermal loads in the current situation in the building were calculated using the TRNSYS-17 software, as shown in Figs. 10 and 11.

Fig. 10

Thermal loads in the current situation in the building

Fig. 11

Climatic analysis of the building

The third stage (analysis stage)

At this stage, study the results and analyze the difference between the current situation and when adding the vertical closed geothermal system in terms of temperature difference, electricity consumption, carbon emissions, and the cost of purchasing and installing the closed geothermal system. This is to know the efficiency of the system and the possibility of implementation.

Results

The results presented in this study were divided into four stages. It can be presented in the following ways:

• A. The first stage presents the amount of heat loss after installing the vertical closed geothermal system in a residential building located in a hot, arid environment

• B. The second stage measures the amount of energy loss from using the vertical closed geothermal system in Alexandria, Egypt

• C. The third stage is to calculate the amount of carbon emission reduction from using the proposed system

• D. Final stage: calculate the difference in economics when purchasing and installing each system

The first stage: the difference in temperatures between the current situation and after installing a vertical closed geothermal system

The research found that the temperature decreased by 36.5 °C in the current situation and became 31.7 °C when adding a vertical closed geothermal system during the peak period.

The temperature decreased by 3.6 °C in September, 4.2 °C in August, 4.6 °C in July, and 4.6 °C in May, as shown in Fig. 12.

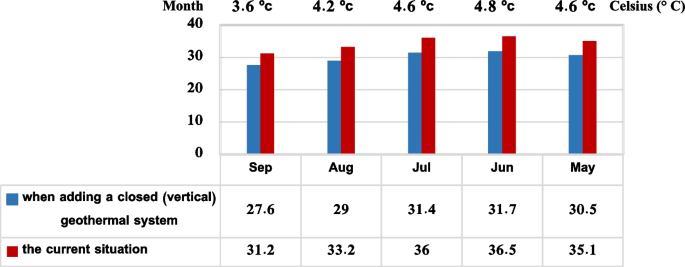

Fig. 12

The difference in temperatures before and after installing a vertical closed geothermal system in the building

The second stage: the difference of electrical energy consumption for cooling of floors between the current situation and when adding a vertical closed geothermal system

The research found that electrical energy consumption decreased by 7136.13 kwh in the current situation and became 5739.12 kwh when adding a vertical closed geothermal system during the peak period (summer), as shown in Fig. 13.

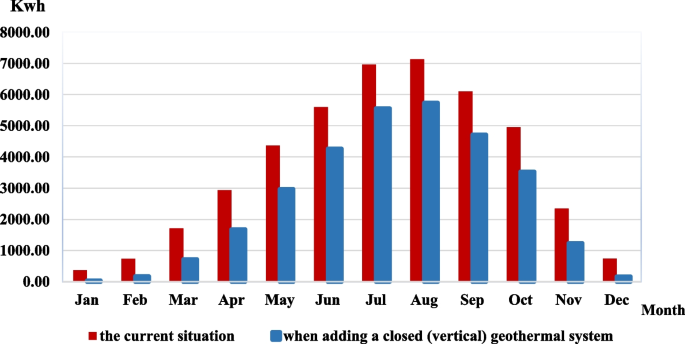

Fig. 13

The difference between the current situation and when adding a vertical closed geothermal system in terms of electrical energy consumption

Then, we concluded that a vertical closed geothermal system helped reduce the electrical energy consumption for cooling by 22.93% during the peak period, as shown in Fig. 14.

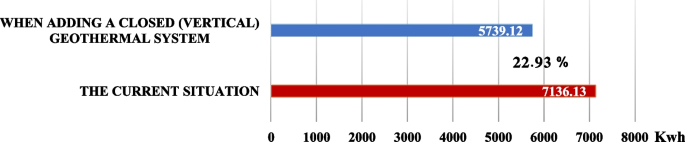

Fig. 14

The total percentage decrease in the electrical energy consumption for cooling the building during the peak period when a vertical closed geothermal system is added

The third stage is the difference between the current situation and adding a vertical closed geothermal system in terms of carbon emissions in floors

The research found that carbon emissions decreased by 5308.6 kg in the current situation and became 4269.3 kg when adding a vertical closed geothermal system during the peak period (summer), as shown in Fig. 15.

Fig. 15

The difference between the current situation and when adding a vertical closed geothermal system in terms of carbon emissions

Then, we concluded that a vertical closed geothermal system helped reduce the carbon emissions for cooling by 22.93% during the peak period, as shown in Fig. 16.

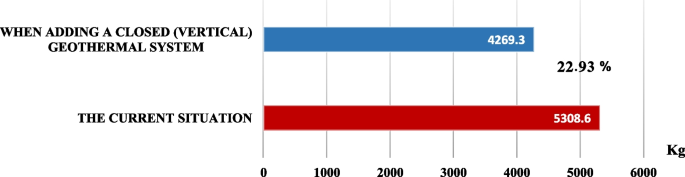

Fig. 16

Total building carbon emissions reduction during peak period when a closed vertical geothermal loop system is added

Final stage: the difference between the cost of a vertical closed geothermal system and a traditional air conditioning system (HVAC) in a building (case study)

Costs of establishing the traditional HVAC system in the residential building were calculated. In this case study, a comparison was made between the cost of a vertical closed geothermal system, as shown in Table 11, and a traditional air conditioning system (HVAC), as shown in Table 12, in a building (case study).

Table 11 The cost of establishing a vertical closed geothermal system in a building (case study)

Table 12 Cost of establishing a traditional air conditioning system (HVAC) in a building (case study)

By calculating the cost of establishing a vertical closed geothermal system, which amounted to 159,879.758 EGP, and comparing it with the cost of establishing a traditional air conditioning system (HVAC) in a building (case study), which amounted to 190,230 EGP, as shown in Table 11, it can be concluded that the cost of purchasing and implementing a vertical closed-loop geothermal system is relatively less expensive than the cost of a traditional cooling system.

The study costs were estimated according to the capacity of adaptations required on each floor of the building, as shown in Table 13, so that the total costs of purchase and installation are 190,230 EGP, by calculating the cost of establishing a vertical closed geothermal system, which amounted to 159,879.758 EGP, and comparing it with the cost of establishing a traditional air conditioning system (HVAC) in a building (case study), which amounted to 190,230 EGP.

Table 13 The calculation of the ability of adaptations required in each floor

Discussion

The process of construction and operation consumes a lot of energy, causing the depletion of fossil fuels and increasing the percentage of carbon emissions and greenhouse gasses. Consequently, the general characteristics of local climate change and heat islands are formed that cause the emergence of the phenomenon of global climate change, which negatively affects the environment and achieves thermal comfort for humans. Thus, there is a constant need for energy consumption to absorb the negative effects resulting from climate change and heat islands, so we must resort to using renewable energies such as solar energy, geothermal energy, and wind energy to reduce the burden on the state in terms of environmental pollution and achieve comfort in providing thermal energy for humans as well as rationalizing electricity consumption in buildings.

Geothermal systems can be divided into an open system in which the main cooling loop either adds or extracts heat, and the secondary loop transports natural water from another source to the heat exchanger to supply thermal energy. There must be sufficient distance between the supply pipes for the discharged water to regain efficiency thermally [25] and a closed system that can be horizontal, vertical, pond, or lake [26].

Geothermal cooling and heating are environmentally friendly and significantly reduce CO₂ emissions [27]. The integrated system can reduce CO₂ emissions by more than 7 kg per square meter. Therefore, the integrated system can make full use of shallow geothermal energy to build an energy-efficient HVAC system [28].

Replacing a conventional electric cooling system with a geothermal system achieves a 26% energy reduction in an apartment building in Memphis, Tennessee, by combining the microscopic properties of the earth [27].

The greatest focus by researchers on the subject of geothermal energy and its systems was on utilizing it in heating buildings, and there were a few researchers who were interested in using it in cooling buildings, so its benefits must remain applicable in other locations. If knowledge of geothermal systems spreads to the extent of solar panels, many will benefit on a small scale. There are hybrid systems used for heating and cooling that are more efficient than traditional geothermal systems, although geothermal energy does not suffer from any problems when operating compared to other renewable sources.

A study was conducted on the role of geothermal energy in heating commercial buildings and a study of its environmental and economic efficiency, but no attention was given to residential buildings, even though it is considered the second most important human need and is considered one of the sectors that consume the most energy in cities at a rate of 74%, as it accounts for nearly half of electrical energy consumption. In Egypt [6], it is also the sector with the most carbon emissions in cities at 50% because it contributes to forming the largest part of the city’s area [29], so the amount of carbon emissions resulting from it is large compared to the rest of the sectors that emit large amounts of carbon. Geothermal energy systems were also evaluated in the USA, Britain, Saudi Arabia, and India, but not Egypt.

Therefore, this research worked to study the effectiveness of geothermal energy systems in cooling residential buildings in Egypt, to complete the study on the role of geothermal energy and its systems in cooling residential buildings in Egypt, to evaluate its role environmentally and economically, and to propose it as a practical solution that contributes to containing environmental problems resulting from climate change and heat islands and increasing energy consumption for cooling in residential buildings.

As the research found that geothermal systems in buildings work to reduce temperatures, electrical energy consumption for cooling, and carbon emissions, which brings the user to thermal comfort inside the residential building at the lowest costs, then it can be proven that the closed vertical geothermal loop system is considered more efficient than traditional HVAC systems in terms of initial costs, and it also works to reduce the electrical energy used for cooling when operating and the temperature of the building.

Therefore, it is considered an effective and clean system that must be circulated in Egypt to benefit from its environmental and economic benefits.

So, if geothermal energy is exploited to cool residential buildings, we will take a step forward in reducing the burden on the state in terms of improving air quality, reducing greenhouse gas emissions, reducing energy demand globally, and knowing whether this system is beneficial for use in Egypt or not. Other, better solutions must be resorted to.

Conclusions

According to the above statements, we note the effect of a vertical closed geothermal system on reducing the temperature of the ground floor significantly, which led to reaching thermal comfort for humans in that floor, but in the first floor, because of the exposure of a large part of its surface to the sun and external heat, the percentage was lower, as well as the floor of the roof due to the exposure of all its surface to the sun and external heat, so the difference was small, but it is less than the traditional cooling system, and this resulted in a decrease in the amount of electrical energy consumption for cooling at a noticeable rate in the ground and first floors and thus led to a reduction in carbon emissions, which works to reduce the effect of heat island and thus reduce the effect of global warming and climate change.

Hence, the vertical closed geothermal system can be concluded as one of the effective solutions that works to reduce the effect of heat islands in residential buildings in Alex, Egypt, and contributes to reducing environmental problems (global warming and climate change).

The main objective of this research is to shed light on and raise awareness in Egyptian society and decision-making circles about the need to apply renewable energy systems, especially geothermal energy systems, to take advantage of Its environmental and economic benefits and exploit them in cooling by thinking in an innovative way by limiting consumption of fossil fuels and rising energy prices and consumption, rising temperatures, and carbon emissions, especially in the summer, in order to limit the formation of heat islands in cities and thus limit global climate change by applying geothermal energy systems in general and the vertical closed geothermal system in particular because they are safe, clean systems on the environment with installation and maintenance costs with a long life span.
