Upgrading informal areas through sustainable urban development principles

Abstract

Informal areas are considered one of the biggest urban problems worldwide; it was estimated in 2018 that 29% of the world’s urban population lived in informal areas (The world bank, Population living in slums, 2022). This research aimed to identify a set of criteria and principles that are the basis for sustainable development in informal areas to achieve a better quality of life for the community. After conducting a literature review of the sustainable development principles, indices, and sustainable development interventions within informal areas, the research links them to set informal areas’ sustainable development principles. Then, by relying on the experts’ questionnaires and their analysis through SPSS, the researchers utilized the experts’ input to define each principle’s relative weight. Additionally, the research applied the extracted principles to the Boulaq El Dakrour case study to assess the sustainability of previous developments undertaken in the area with community participation.

Introduction

There was a significant increase in urbanization between 1995 and 2015. Increasing urbanization and poverty resulted in the emergence of informal areas. Additionally, there is a direct correlation between the rise in urbanization and the increase in informal areas [1]. According to the UN-Habitat Regional Office for the Arab States, more than half of the Arab region population lives in cities and human settlements; 32.47% represents the percentage of the slum population in the Arab states. By 2050, more than 70% of the Arab population will be urban [2].

Informal areas are among the biggest problems in Egyptian urbanism. The percentage of informal urban areas is 37.5% of the total urban area. Informal areas are divided into unplanned areas (97.1%), including informal areas constructed on agricultural land and informal areas built on desert land, and unsafe areas (2.9%), including four levels according to the degree of risk, as shown in Fig. 1 [3].

Fig. 1

The chart illustrates the percentage of formal and informal settlements in urban areas in Egypt [3]

The term “unplanned areas” refers to regions developed to counteract the laws and regulations governing planning and construction and is determined by the general strategic plan adopted for the city or village. As a result, informal areas have several problems that need to be discussed and resolved [4].

The three branches of sustainable development (environmental, social, and economic) that address the needs of the present generation without affecting the future generation’s capabilities to meet their own needs and aspirations can be used to overcome the challenges of informal areas. However, although several sustainable urban development theories and principles exist, they are mostly tailored to formally planned areas and seldom address the peculiarities of informal areas’ characteristics and needs. Hence, there is a current gap in addressing sustainable urban development within urban informalities, and there is a particular need to develop a checklist to evaluate and propose solutions. This paper uses Egypt as a case study of informal urbanism in the Global South.

The urgent needs of residents of informal areas impose significant pressure on decision-makers to focus on meeting these needs without considering the comprehensiveness of solutions that address all aspects of the area’s development. Thus, the adoption of principles of sustainable urban development tailored to the characteristics of informal areas is necessary.

This paper proposes sustainable development principles responsive to the characteristics of informal areas. First, the study investigates several sustainable development-related concepts, principles, theories, indices, and checklists and critically assesses previous sustainable development interventions within informal areas. Second, the paper validates the extracted principles through an expert questionnaire and defines the relative weight of each principle. Finally, this paper applies this outcome to a case study to assess the previous development efforts undertaken in the past couple of decades.

Methods

This study has five parts. The first part is a literature review of sustainable development theories, principles, and indices for informal areas, including past attempts. The second part is a comparative analysis of sustainable development theories, principles, and indices.

The third part involved a questionnaire for sustainable urban development experts to improve those principles. The validity and significance of the principles were determined via SPSS analysis. The questionnaire was answered by approximately 50 urban development experts, including district and governorate engineers, university professors, experts from the German International Development Agency GIZ, Housing and Building Research Center (HBRC) researchers, and engineers with experience in developing informal areas. The percentage of experts aged between 40 and 50 years is 25%, and the percentage of experts aged > 20–30 is 75%. Additionally, 78% of those had experience ranging from 1 to 5 years, and 22% had 5 to 10 years of experience. Each expert was required to decide whether these points were appropriate for informal areas or not on a scale of 1 (least relative weight) to 5 (highest relative weight) to determine the importance and relative significance of each principle. SPSS was used for two statistical tests to validate the questionnaire and sample. The tests showed high reliability (Cronbach’s alpha = 0.987) and significant results (F = 8.245, sig = 0.00).

The fourth part evaluated sustainable development projects in the informal district of Boulaq El Dakrour through observations, interviews, and questionnaires. The questionnaire was administered to 30 respondents, targeting various sectors of society and men and women of different ages. It included the main elements of the informal areas’ sustainable urban development principles regarding economic, social, and environmental aspects. The percentage of people aged > 20–40 years was 30%, while that aged 40–60 years was 70%, with diverse professions such as workers in workshops, youth centers, schools, libraries, health services, civil associations, and shops. The statistical analysis was conducted using the SPSS program. The reliability test with (Cronbach’s alpha = 0.786 > 0.75) showed that the sample was valid at a rate of 78.6%, and the ANOVA test was used to analyze, the sample variance, moreover, since (f = 26.379, sig = 0.00), meaning that f > 0.5, sig < 0.05, this means that the experiment is functional.

The fifth part compares experts’ and community views on discussing the sustainability of Boulaq El Dakrour, as shown in Fig. 2 below.

Fig. 2

Research methodology

Reaching sustainable development in informal areas

The literature review began by illustrating sustainable development principles and indices suitable for informal areas and then discussing previous informal areas’ sustainable development interventions.

Sustainable development principles and indices for informal areas

Many sustainable development principles and theories have emerged that address the three pillars of sustainable development (economic, social, and environmental). However, these theories need to account for informal areas because of their unique nature and the need for different development approaches. Therefore, this research establishes guidelines and standards for the sustainable urban development of informal areas by examining sustainable urban principles (smart growth, new urbanism, sustainable urbanism, transit-oriented development, and the new urban agenda) and sustainable development principles (eco-village principles, and sustainable development goals); as well as sustainable development rating systems and checklists that apply these theories (e.g., LEED for neighborhood, the Green city index, the city prosperity index, and the UK government sustainability checklist), as shown in Fig. 3.

Fig. 3

Sustainable development of informal areas. Source: author

Sustainable urban development theories

Urban development theories emphasize the importance of creating walkable and sustainable communities, including smart growth, new urbanism, sustainable urbanism, transit-oriented development, and eco-village principles. Smart growth principles include mixing land uses, compact building design, offering various housing options, and encouraging public participation in development decisions [5]. New urbanism promotes walkability, mixed usage, and green transportation [6]. Sustainable urbanism emphasizes transit-served urbanization with high-performance buildings and infrastructure [7]. The transit-oriented design incorporates walkability, a central train station, and reduced parking [8]. Eco-village principles prioritize a diverse social makeup, public realms for pedestrians, and frequent community participation in planning and design. These principles also emphasize the importance of ecological soundness, compatibility with morality, and energy efficiency [9]. However, the differences between these theories are shown in Table 1, highlighting their unique priorities and approaches.

Table 1 Sustainable urban development theories comparison

Sustainable development principles

SDGs and the new urban agenda promote sustainable development principles for informal areas. SDGs include reducing poverty, hunger, and inequalities; promoting good health, education, and sustainable communities; and addressing climate change and responsible consumption. The New Urban Agenda emphasizes urban planning, development, and management along five implementation pillars to achieve sustainable and inclusive communities and cities [10, 11].

Urban development indices and checklists

The Indices and checklists for sustainable urban development include the LEED for Neighborhood, the City Prosperity Index, the Green City Index, and the UK government Sustainability Checklist. LEED for the neighborhood [12] focuses on green infrastructure and buildings, smart locations and connectivity, and neighborhood patterns and design. The city prosperity index [13] has five dimensions: productivity, infrastructural growth, lifestyle enhancement, social inclusion, equity, and environmental sustainability. Moreover, the Green City Index [14] is the third most common index concerning CO2 emissions, energy, land use, transportation, water, waste, sanitation, air quality, and environmental governance. The last one is the UK government sustainability checklist [9], which investigates economic sustainability, natural resources, social sustainability, and the local environment.

Collecting these indices, principles, and lists helps form sustainable development principles for informal areas, as shown in Table 2.

Table 2 Sustainable development principles for informal areas

Previous approaches in informal areas of sustainable development

First, Law 119 for 2008 replaced the terms slums, informal settlements, and Ashwa’iyyat with unplanned areas and since 2008, the term “unsafe areas” has been used to address the conflicting definitions and names of the informal areas that have affected the statistical analysis of the ISDF [15].

The evolution of Egypt’s informal settlement upgrading strategies, such as contemporary participatory development practices and housing policies that provide affordable housing to the urban poor, should be mapped. Additionally, practical approaches have been adopted for informal settlement upgrading and addressing settlement-specific problems, such as inadequate housing, lack of infrastructure or services, poor accessibility, severe environmental degradation, and urban poverty. However, more consideration should be given to land regularization and the legalization of tenure, nontraditional community finance schemes, integration with housing markets, and land supply [16]. Figure 4 shows the state policy in dealing with informal areas’ timelines.

Fig. 4

State policy in dealing with informal areas timeline. Source: author according to [17, 18]

Previous research has addressed the problem of informal areas and has tried to offer many recommendations and solutions to achieve actual development in such areas; some have done so by integrating sustainable urban design concepts and principles. For example, Nassar [19] suggested converting informal areas into eco-friendly sustainable communities by assessing local needs and potentials and three levels of sustainability: economic, social, and environmental for “Houd 10” in Alexandria.

Miguel P. Amado [20] employed a method that integrates social context analysis and a participatory design process to develop an inclusive and sustainable approach for informal settlements.

Moreover, Khalil [21] linked sustainable urbanism and sustainability in informal urban development by studying four examples, including two informal areas in Cairo (Boulaq El Dakrour and Imbaba) and two upgrading projects (Imbaba Airport and Zeinhom). The results highlighted the importance of developing urban development theories and guidelines to address sustainability issues.

The slum in Alexandria, Egypt, known as “Ezzbet Abd El Meniem Riyadh”, embraced sustainable urban development. The study revealed that residents possess the necessary knowledge to address community issues but require guidance, training, and empowerment to create independent and repeatable solutions [22].

Interestingly, Montoya [23] created 13 indicators to evaluate the sustainability of informal settlements in 2 poverty-stricken areas of Bogota. Interviews were conducted with residents, and experts validated the findings. Khalil and Gammaz [24] analyzed informal areas’ compliance with sustainable urbanization principles and their green features, energy efficiency, and quality of life measures. These authors suggested solutions to increase resilience to climate change and improve quality of life.

Elrefaie [25] introduces a methodology for defining variables and indicators to evaluate the sustainability of informal areas. The aim is to develop a rating system called the Compass of Informal Areas Development, which is a graphical policymaking tool for urban planners and policymakers to quickly diagnose the sustainability performance of informal areas and formulate strategies accordingly, where variables related to quality of life (housing adequacy and social and economic welfare) with place value are represented graphically as a ‘diamond’ with a radar shape in four axes. The application of this developed rating tool in informal areas has provided a comprehensive picture and clear interpretation of the area’s performance.

The Government of Egypt has revised its Nationally Determined Contribution (NDC) to accelerate the transition toward a low-carbon development pathway by increasing the adoption of renewable energy, with a target of 42% installed capacity by 2030 [26]. This update aligns with Egypt’s Sustainable Development Strategy: Egypt’s Vision 2030. The NDC includes measures such as promoting renewable energy and energy efficiency in existing and new buildings [27] and The Informal Settlements Development Fund (ISDF) concentrates on developing two distinct types of areas: unsafe zones that are relocated to new housing developments, such as the Ashish area development project in Dokki District-Giza Governorate, the Maspero Triangle development project in Boulaq District, and the Al-Asmarat project in Cairo Governorate. The Fund has successfully implemented 13 unplanned area development projects in various neighborhoods, including Omraniya, Al-Haram, Al-Warraq, Boulaq Al-Dakrour, North Giza, and Giza City. These initiatives are aligned with the city’s strategic plan and planning requirements, resulting in improved services for citizens while adhering to planning requirements and developing all existing utility networks, civil defense systems, and street lighting. As the ISDF transitions to the Urban Development Fund (UDF), it will also engage in other goals related to sustainable cities and communities (SDG 11), gender equality (SDG 5), economic growth (SDG 8), climate action (SDG 13), and partnerships (SDG 17) [28].

Comprehensive principles are needed for sustainable development in informal areas, covering economic, social, and environmental pillars. The existing development efforts are insufficient, and specialized principles are lacking. The research compared sustainable development principles, checklists, and prior projects to establish principles for informal area development, as shown in Fig. 5.

Fig. 5

Overlapping sustainable development principles, checklists, and previous experiences of informal areas development to reach components of informal areas sustainable development

Thus, informal areas’ sustainable development principles are divided into four main categories: economic, social, and environmental sustainability; quality of life; evaluation; and maintenance. The main principles are divided into subprinciples, as follows: economic sustainability: basic needs, work, and productivity; social sustainability: health; education; community safety; equality; freedom of choice; and participation: environmental sustainability: natural resources; building, and infrastructure; water; sewage; waste; electricity; earth and soil; and transportation; quality of life and maintenance: quality of life, maintenance, evaluation and follow up, as shown in Fig. 6.

Fig. 6

Informal areas of sustainable development principles

Results

This research develops a list of informal areas’ sustainable development principles and applies them to the Boulaq El Dakrour case study, as shown below.

Validation of informal areas’ sustainable development principles through expert opinions

Table 2 and Fig. 7 provide evidence of the results obtained from the statistical analysis of an expert’s questionnaire using the SPSS program. These results reveal the relative importance of each sustainable development principle for informal areas.

Fig. 7

Chart of informal areas sustainable development principles weight

To establish a balanced assessment of sustainability, the research suggests aggregating expert opinions by determining the average response for each pillar, including economic, social, and environmental considerations. Next, to equalize the weight of these pillars with a total weight of 90%, we propose normalizing their sum to a value of 30. The remaining 10% of the evaluation will be allocated to quality of life and maintenance principles, where each principle should be given a score of 5.

Therefore, the criterion for assessing a project’s sustainability includes a balanced consideration of economic, social, and environmental factors, each of which constitutes 30% of the overall assessment. Moreover, the quality of life and maintenance principles comprise the remaining 10% of the evaluation, further emphasizing the importance of a holistic approach to sustainability.

Additionally, the table provides a comprehensive overview and comparison of the sources attributed to each point within the sustainable development principles for informal areas. The first column outlines the principles and previous developments, followed by the four checklists mentioned, and the last column shows the relative weight of the principles.

The importance of having these relative weights also the determination of the importance of the point and the priority of applying it is to help in asses the case study area showing the percentage of achievement points in the list of sustainable development principles for informal areas like other checklists such as LEED rating system.

Boulaq El Dakrour case study

Boulaq El Dakrour is one of the most common unplanned areas in the Giza Governorate. Construction started on agricultural land in 1950. Figure 8 depicts Boulaq El Dakrour, which has a population of 1.2 million and a 9-km2 area (GIZ: Upgrading of Boulaq El Dakrour Governorate of Giza, 2010, unpublished).

Fig. 8

Location of Boulaq El Dakrour District in Greater Cairo. Source: author, according to Google [29]

Development in Boulaq El Dakrour began in 1998 through a development cooperation protocol between Egypt and Germany, starting with a 5 million Euro grant for infrastructure in 2003. GIZ aimed to improve the infrastructure and build trust in local administration.

The work included managing the grant of the community investment fund (CIF) (10% of the budget, € 0.5 million) and facilitating the agreement on infrastructure development projects engaging the local administration and the local popular council (LPC), and consulting of residents and other local stakeholders. However, in 2015, the Participatory Needs Assessment [30] revealed existing issues and their priorities for action, including solid waste, sewage, road conditions (unpaved streets, transportation, traffic congestion, street vendors), lack of security (harassment and drugs), drinking water, electricity, education, gas, hospitals, and pollution, as shown in Fig. 9.

Fig. 9

The Priority of the problems in Boulaq El Dakrour for the population [30]

Applying the informal areas’ sustainable development principles to the development of Boulaq El Dakrour

Applying the determined informal areas’ sustainable development principles in Boulaq El Dakrour, Table 3 shows how the area performed and the sustainability of previous development interventions.

Table 3 Sustainable development principles assessment for Boulaq El Dakrour

Figures 10, 11, 12, 13, 14, and 15 below show the intervention of the infrastructure and describe the façades and markets before and after the development, respectively.

Fig. 10

Taraat Al-Zumar market before development [31]

Fig. 11

Taraat Al-Zumar market after development [31]

Fig. 12

Building facades before development [32]

Fig. 13

Building facades after development [32]

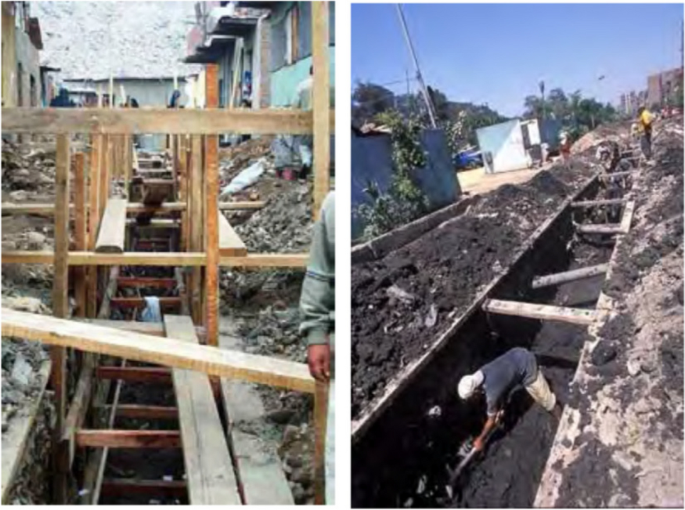

Fig. 14

Infrastructure interventions: improving the sewage network [31]

Fig. 15

Infrastructure interventions: New pedestrian bridge [31]

When conducting a comparative analysis of experts’ opinions (desired sustainable development) in expert’s questionnaire illustrated above especially in Table 2 with the views of community members (the current situation in the region) in the community questionnaire, the principles of sustainable development were included and formulated in 20 questions in the community questionnaire that represent the main points in the principles of sustainable development for informal areas. However, the researchers found that the residents agreed with the experts. The residents’ opinions were about the deterioration of the area, such as decreased access to work and productivity in the area, the decline of this finding supports the experts’ opinions, as they are less valuable than the experts are, so they are common in that they reflect the region’s deterioration. Among the positive points from the population’s point of view and the experts’ opinions is the availability of secure tenure, electricity, and the ability of the community to participate, as shown in Fig. 16.

Fig. 16

Analysis of the positive and negative points in the Boulaq El Dakrour area. Source: the researcher

The development that took place was limited and at intervals, and there needs to be follow-up. The problems in the region also increase, such as sewage and waste problems, security issues, education, health, and others, so sustainable development must be made to achieve a better standard of living and improve the quality of life.

Discussion

Therefore, there was a case of deterioration in Boulaq El Dakrour, which required development and maintenance since the previous action was limited to spaced intervals and had no follow-up. Additionally, the problems in Boulaq are increasing, such as sanitation and waste problems, lack of security, unemployment, poor education, lack of healthcare, and other issues. However, on the other hand, there is the availability of secure tenure, electricity, and the ability of society to participate in the development process. Thus, the development of Boulaq should pursue more comprehensive sustainable development to achieve a better quality of life. The Boulaq case has shown the benefits of applying the proposed informal area’s sustainable development principles, highlighting the weaknesses and opportunities through the SPSS analysis of community responses to the interviews and questionnaire.

The case study has shown the applicability of the proposed principles, found relevant information, and related to real issues identified by the questionnaire respondents. However, not all the principles were equally easy to apply. For example, some data, such as information about promoting local food production and reinvesting in local communities, were unavailable. Although there is no local production, there may be some unannounced local production. In addition, achieving social balance at the neighborhood level was difficult to assess because data about income in the community was not available.

Moreover, supporting flexibility in exterior and interior design was difficult to assess, as additional studies are needed to reach within the appartements. Additionally, some principles were not applicable, such as developing a plan to restore ecosystems and conserve biodiversity; adopting a system for leakage and recycling of water; adopting organic waste recycling programs and utilizing them as a local fertilizer; ensuring energy efficiency in buildings, infrastructure, and sites; providing cycling infrastructure; and evaluating, following up, and maintaining development projects. While providing adequate public infrastructure and facilities for healthcare and education were easy to reach from the Participatory Development Programme and GIZ reports, other data were collected through site visits regarding being built on agricultural land and having high densities, as shown in Table 3.

As mentioned, experts verified the sustainable development principles of the developed informal areas, as shown in the SPSS results of the questionnaires. They did not exclude any point in the principles, but they assigned each different relative weight, as discussed in Table 3 above. As a result, informal area sustainable development principles support the decision-making process to evaluate and guide the implementation priorities of the informal areas’ sustainable development.

The proposed principles cover all pillars of sustainability, filling the gap identified earlier in the literature; Khalil [21] selected principles from urban development theories to help develop informal areas sustainably, but they were not comprehensive. Furthermore, it complements the QOL index for unsafe areas developed by Abdel-Moneim et al. [33], as the currently proposed principles cover informal areas (unplanned areas) with different characteristics.

Conclusions

Informal areas represent a major problem in Egyptian urbanism; the previous development projects did not fulfill the residents’ needs or ensure the sustainability of their efforts. Therefore, sustainable urban development principles must be revised, especially for informal areas. So, the research tried to fill this gap by providing informal areas with sustainable development principles. The informal area’s sustainable development principles can be reached by integrating urban development principles and checklists while considering the special conditions and problems of informal areas.

These principles also help the decision-making process guide the implementation priorities in the sustainable development of informal areas. Hence, they can be included in governmental urban development plans and in the work of other agencies concerned with developing informal areas such as UN-Habitat and others.

The research applied these principles to the Boulaq El Dakrour case study and concluded that the development made is not sustainable and the region needs comprehensive sustainable development to achieve a better quality of life.

The study has potential limitations that could affect its generalizability, representativeness, and reliability. Firstly, the studies can be applied to other informal areas worldwide but require different relative weights suitable for their context. Secondly, the sample size of 50 urban development experts may not fully represent diverse perspectives and expertise in informal areas. Thirdly, the study heavily relied on expert opinions, which could be subjective and biased. Lastly, the study only assessed the sustainability of previous development efforts in Boulaq El Dakrour over a specific timeframe, and its long-term impacts and outcomes require further investigation.

The future research direction aims to utilize the principles of sustainable development in informal areas through the implementation of Geographic Information Systems (GIS) programs. By integrating GIS and parametric urban design programs, a parametric model will be developed to assess and enhance informal areas in a sustainable manner. This model will provide decision-makers with insights into appropriate interventions for development.
