Employing systems of green walls to improve performance and rationalize energy in buildings

Abstract

In the context of energy crisis challenges, climatic changes, rising temperatures, and the disappearance of green areas, all these have led to emerging thermally uncomfortable indoor spaces because their envelopes did not prevent the harmful effects of the outdoor climate. Hence, the urgent need to adopt the most effective methods to treat thermal performance and rationalize energy consumption in buildings has emerged. Consequently, the research aims to improve the environmental and thermal performance of building envelopes affecting their indoor environments by employing the systems of green walls. Accordingly, their types, design considerations, characteristics, technical elements, and indicators of sustainability aspects related to them were collected and investigated to ensure their success. Also, these systems’ indoor and outdoor effects on buildings and two international experiments were analyzed for benefit when dealing with these systems. An analytical comparison was performed concerning their applications to guide understanding and utilization. The study devised a seven-stage framework to choose, design, evaluate, and attain the most appropriate green wall system according to the state and circumstances of the studied building. Finally, inspecting this framework was by the chi-square test, thus fostering the integration of the natural environment with the built environment, human comfort, and energy conservation.

Introduction

The world is exposed to the energy problem and the depletion of natural resources, so it is necessary to turn to renewable energy sources and find solutions and alternatives to rationalize energy consumption, especially non-renewable energy. The building sector is one of the sectors that consume the majority of energy as one of the causes of climate change and is affected by it as well; the construction process consumes 36% of the used energy overall and 65% of the electricity consumption total [1, 2]. Many trends have emerged, and following Egypt’s Vision 2030, the fifth goal—environmental sustainability—an integrated and sustainable ecology system, they push to design and construct sustainable and green buildings that are friendly to the environment. These trends aim to adapt projects to the surrounding environment, minimize non-renewable energy consumption, and benefit from renewable energy sources in operating and managing them [3]. These are due to climatic changes and rising temperatures that negatively affect the thermal performance of the building through its envelope, facades, or outdoor walls [4]. Reflective surfaces like facades also affect the microclimate surrounding the city, increase the temperatures around the buildings, and thus affect the discomfort felt and increase the amount of used energy [5]. Therefore, one of the possible solutions is using vegetal surfaces for the facades, which reduce the wasted energy by evaporation and thermal insulation, increase the sunlight scattering, and reduce the heat island effect [6,7,8,9]. Due to the lack of green open spaces in cities, planting trees and shrubs is often an unviable option; hence, building facades is a valuable option that utilizes the solid areas ignored or left during the façade design. The building must represent the shelter that protects man from those climatic changes that have become a reality; humanity is suffering from it now. The manifestations of climate change are constantly increasing, represented by rising temperatures and the subsequent rise in sea levels, tropical cyclones, and others [10]. Hence, the continuous rise in temperatures and how the building can adapt to that rise must be faced, besides the associated consequences on thermal comfort within buildings. The development of more complex shapes of buildings has accompanied the increase in energy demand [11]. The primary task of the building is to protect its occupants from the vagaries of the weather and extreme climatic conditions [5]. It is clear from the above that the importance of applying SGWs to the walls and facades of buildings that are an envelope separating two environments in constant transformation. Such a designed envelope sometimes contains fixed components and elements operating under different conditions and in the same manner, besides other factors that cause buildings to consume 40% of the required energy [2]. Facades are one of the main building elements that affect energy performance. So, designing the facade elements must meet the necessary flexibility and performance efficiency in terms of the flowed energy, the temperature of the outdoor environment, and human comfort [1, 8]. Since there are many SGW types, each system has features and characteristics that affect its quality and role in thermally and environmentally improving buildings’ performance [7, 12,13,14]. These features and characteristics need to be emphasized, investigated, and illustrated before selecting and implementing such systems to be suitable for the state and conditions of a building. Hence, a methodology and a practical framework will be required for dealing with these systems to be the most suitable for use in buildings, consistent with their condition, and have an influential role in decreasing and rationalizing energy consumption and reaching thermal comfort.

Research problem

The emergence of indoor spaces that are not suitable for life (healthy, psychologically, and functionally) without seeking to make modifications in the facades and outdoor walls to control the outdoor climate effects upon such indoor spaces. For creating an environment with thermal performance being the most comfortable for users [4, 12]. Also, dark places waste daylight as energy as a friend to the environment despite the sun’s brightness being permanent [2, 5]. In addition, the ecological balance disruption, besides global warming, absence of external shading, climatic changes, and their increasing deterioration with the gradual disappearance of green areas around buildings [3]. Thus, sick buildings have emerged, which consume more energy than necessary.

The aim and objectives of the research

The research aims to improve the environmental and thermal performance of the building’s envelope for positively affecting the indoor environment and energy consumption of buildings through a proposed framework to design and employ systems of green walls, besides evaluating and developing these systems to be the most suitable for the considered projects. Accomplishing this aim is through the following objectives:

  1. (1)

    To study the concept and role of SGWs, inventory their types, and consider their indicators concerning the three sustainability aspects to ensure the SGWs success when meeting their design considerations, technical features, and elements

  2. (2)

    To investigate the indoor and the outdoor effect of SGWs on the thermal and environmental performance of the buildings and energy savings, thus understanding their application classes to utilize in buildings

  3. (3)

    To devise and build a plan and guide as a framework for the designer to employ and deal with SGWs while selecting, designing, evaluating, applying, re-evaluating, and developing after actual implementation.

Methods

The study used the inductive-analytical approach to demonstrate and interpret the concept, role, and types of SGWs. Furthermore, the design considerations, technical features and elements, and the indicators of the three sustainability aspects of such systems were collected and itemized to ensure their success.

Hence, utilizing the analytical approach was in two stages; the first stage analyzed the indoor and outdoor effects of using these systems on buildings, whether positive or negative. Then, investigating the two international experiments was to reach a set of results and considerations to benefit in treating the thermal performance, rationalizing energy, and when choosing, designing, and evaluating SGW. These experiments have the same varied climate conditions between summer and winter as the climate in Egypt. In the second stage, the analytical comparison of the application classes of these systems was conducted to understand the usages of these systems, encourage applying them, and integrate the natural environment with the built environment. The analysis depended on the previous features, considerations, and sustainability aspects.

Finally, the deductive approach was to set a framework for identifying, designing, evaluating, applying, re-evaluating after executing, and developing the most appropriate SGW to employ and deal with efficiently. Then, utilizing the chi-square test and 5-point Likert scale to inspect the feasibility and reliability of the proposed framework. Hence, this framework will be a mechanism, a tool, or an implementation plan for the success of these systems.

Introducing the systems of green walls (SGWs)

The green envelope is one of the components of the adaptive facades [2]. Its walls use climbing and herbaceous plants to cover supporting structures or grow directly on the facade surface, as shown in Fig. 1. Utilizing these systems was to treat environmental problems caused by the lack of green spaces. Furthermore, they have an influential role in absorbing greenhouse gases and purifying the air of suspended pollutants [15]. The structural system of SGWs for green facades and living walls is either metal, wood, or plastic containers connected to walls by horizontal, vertical, or pivotal arbors. The structural system is either two-dimensional, such as cables, wires, and meshes, or three-dimensional, such as suspended frames. The cable grid system supports climbing the plant until it grows and creates green facades, while the wired grids support the slow growth of plants [3], as shown in Fig. 2. The wiring system is more flexible and provides broader areas of design applications that are better than the cable system. Also, it meets an infinite number of different sizes and styles that are adjustable in both vertical and horizontal directions.

Fig. 1
figure 1

The main concept of the green façade (left) and living wall (right) [8]. The green façade where plants are directly on the wall with roots in the ground or upon a net fastened to the wall with roots in the earth. The living wall where plants; their roots are on-wall-mounted units or upon a net fixed to the wall, and the roots do not extend into the ground

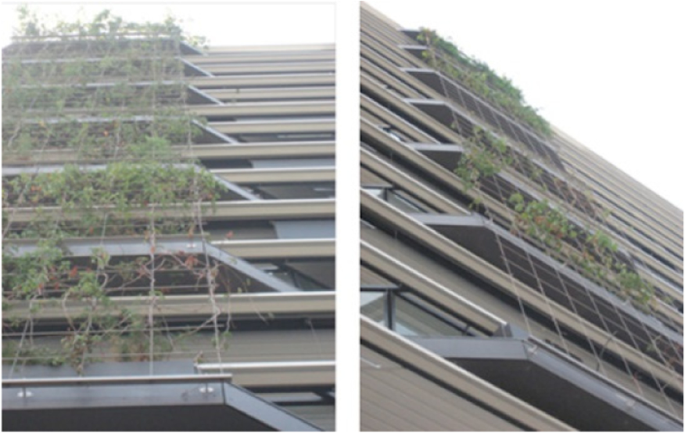

Fig. 2
figure 2

The system of cables and wiring for the climbing plant [14]. The two systems use high-tensile steel cables and related equipment. The wiring system is more flexible than the cable system and allows for greater design space. It may be adjusted in both vertical and horizontal dimensions to accommodate an endless number of different sizes and styles

Design principles, considerations, and technical elements for the SGWs

The surrounding conditions of a building and the environment require the designers to consider the following for SGWs [7, 12], as in Table 1.

Table 1 Principles, considerations, features, and technical elements of SGWs [1, 6, 9, 11,12,13,14,15,16,17]

Indicators of the three sustainability aspects for the success of SGWs

While following the previous considerations and activating the features and technical elements of SGWs, considering the three aspects of sustainability is necessary for these systems to succeed, as in Table 2.

Table 2 The indicators of the three sustainability aspects are related to SGWs [9, 10, 12]

The influential role of SGWs indoor and outdoor

Consequently, it is an adaptive system capable of changing its behavior synchronized with changes due to the natural characteristics of plants, design principles, considerations, and technical, besides its indicators according to the three sustainability aspects, as shown in Tables 1 and 2. Hence, such systems have positive and negative effects on humans, buildings, and the surrounding environment, indoors and outdoors. In the outdoor environment, the percentage of green vertical levels added to cities equals many times the horizontal areas that can be difficult to provide within a crowded city [15]. Thus, the air is purified from carbon dioxide and suspended pollutants, produces oxygen, and provides a good general picture of streets, better health, and a habitat for birds and living organisms; being a friend to the environment gives better character to the building’s personality, helps enjoy nature, and increases the aesthetic value of buildings [12, 13]. If the ratio between the height of a green wall system and the road width is equal to one, the amount of dust and fine particles is reduced by 30%, and by doubling the ratio, it reaches 45% [11]. Thus, it positively affects the city’s local climate, the temperature around the buildings, and the heat island phenomenon. SGWs scatter the sun’s rays, provide shading, control daylight, absorb rainwater, and cool air by evaporation during the transpiration process [4]. In the indoor environment, they improve the thermal performance of the building facades, especially in hot areas, purify and cool the air before entering the space, and reduce noise inside the building at acceptable rates [16]. They scatter and absorb sound waves from the environment, and they recycle drain water by absorbing and exploiting the remainder after purification [11]. The most important disadvantages of these systems are constant maintenance, pruning, cleaning, renewal impediment of facades, falling leaves, dark rooms, and damaged walls, plus increasing insects, theft due to easiness, climbing, more dirt inside buildings, and clogging gutters and drains [6].

Accordingly, the examination and control of the thermal and environmental performance of SGWs impact considerably on energy rationalization and human comfort, as an integration between the built environment and the natural environment, taking into account the aesthetic, acoustic, and economic performance of those living systems.

The thermal performance behavior of buildings and energy rationalization in case SGWs for human comfort

Conducting experiments have been on the climatic effects of plants on buildings by combining vegetation cover on walls, ceilings, and open spaces in the building context [6]. Numerous studies have proven that the vegetation cover of the façade benefits the thermal and environmental performance levels of a building. Furthermore, two investigated international experiments have the same varied climate conditions between summer and winter as the Egyptian climate, as shown in Table 3. The analysis results can be employed to understand the behavior of the thermal performance of buildings and how to select, design, and implement such systems.

Table 3 The similarity of varied climates between the summer and winter of the two international experiments to Egypt’s climate

Conducting the first experiment was at the Institute of Physics of Humboldt University, Berlin, Germany, which sought to combine rainwater management and energy savings with natural air conditioning through vegetation walls, as in Fig. 3 [10, 18]. The shade generated by plants as a cooling effect affects the building energy consumption to become a passive air conditioning system natural. From monitoring the solar radiation on a plant surface during the summer months, temperature measurements show that 58% of the plant surface makes transpiration for evaporation, which contributes to cooling the environment compared to traditional roofs. In the summer, plants act as a heat barrier for the indoors by 60% more than the usual roof as the vegetation contributes to the evaporation process. Hence, SGWs still have a significant impact on the energy balance.

Fig. 3
figure 3

The facades of the Institute of Physics at Humboldt University, Berlin, Germany [10]. Its facades include rainwater management and energy savings with natural air conditioning through plant walls

The second experiment is Bioshader at the University of Brighton, Britain. A comparison was between units of windows not covered with plants and others covered with plants, as in Figs. 4 and 5. The result was as follows: the room with the covered windows with plants decreased the temperature to 3.5 °C, while the other room not covered with plants increased the temperature to 5.6 °C. The decrease in the thermal energy of the penetration of solar rays of one layer attains 37% and with the five layers of leaves reaches 86%. The penetration degree measurement of solar radiation on single-layered leaves reaches 0.3, while five-layered leaves reach 0.14 [10, 18].

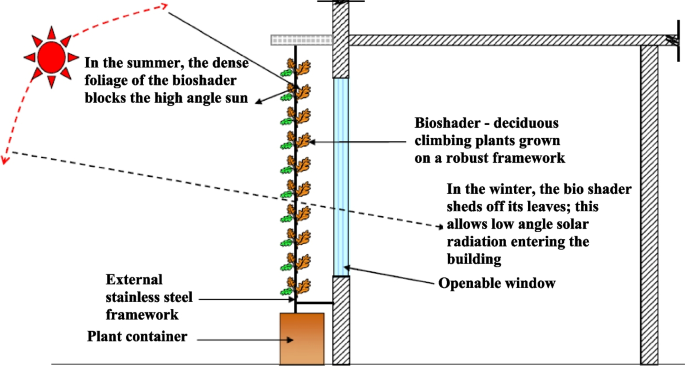

Fig. 4
figure 4

Section of Bioshade [10]. Its facades include rainwater management and energy savings with natural air conditioning through plant walls

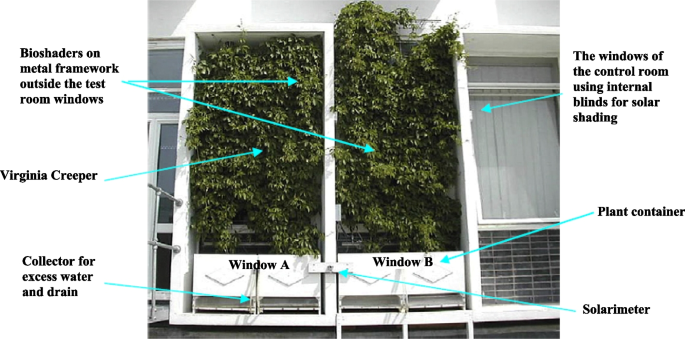

Fig. 5
figure 5

Bioshader wall in the summer [18]. The units of windows are not covered with plants, and others are covered with plants and the utilized equipment to carry out the Bioshader experiment

Based on forgoing study sections and through the two experiments, the following can be deduced, derived, and illustrated:

  1. (1)

    Vegetation creates for itself a completely different climate from the surrounding conditions. This climate influences the indoor space depending on the height, orientation, and location of the surrounding buildings. Not exposing the façade to extreme fluctuating temperatures is hot during the day and cold during the night, and the plant type differs according to the different climates.

  2. (2)

    The green wall mechanism depends on the distance between the facade and the vertical layer cultivated if direct and indirect cultivation systems. The indirect planting system contains a layer of stagnant air that has an insulating effect; accordingly, vertical greening can work as an additional insulator of the façade efficiently.

  3. (3)

    The vegetation layer blocks direct sunlight and can be an effective method for impeding solar radiation, ensuring the temperature is lower indoors. Using plants to provide shade is an effective way to control solar radiation measured in the shaded area of trees 100 W/m2 which is much less than the area without shade 600 W/m2.

  4. (4)

    The physiological process that occurs in the plants aims to moderate the outdoor and indoor temperatures; thus, it contributes to energy savings.

  5. (5)

    Vegetation and greenery contribute to the vertical mixing of air as warm air rises above hard surfaces and is replaced by fresh air, reducing the heat island effect. Vegetation improves local air quality by reducing smog, producing oxygen with lower airborne particles, and lowering the temperature.

  6. (6)

    In the winter, the SGW works to isolate the thermal radiation of the indoor walls by the green layer and reduce energy consumption by 50% during winter, as the vegetation layer acts as an insulator and disperses the wind moving along the building surface.

  7. (7)

    Experimental studies focus on the shading and cooling presented by SGWs. However, there is a set of factors that affect the extent of green facade shading: the quality and type of support structure, facade orientation, and whether the climber is deciduous or evergreen; also, the expected lowering of wall surface temperature ranges from 5 to10 °C.

  8. (8)

    Experiments have shown that the daytime temperature difference between a wall without vegetation and a green wall is consistently higher by 5 °C, with its peak at 13 °C. During the day, the temperature difference is positive between a wall without vegetation and a green wall, which decreases the building’s cooling load. Nevertheless, at night, the negative temperature difference means that, in the absence of the green wall, the exterior surface cools more quickly than the green wall. Also, the indoor walls of the green systems are always cooler than walls without vegetation cover.

  9. (9)

    According to the studies, electricity consumption ranges from 5 to 10% to cool buildings to compensate for temperature increases ranging from 0.5 to 3°C. Therefore, each decrease in the indoor temperature by 0.5 °C can reduce electricity usage by about 8% of conditioning air in the summer. Planting urban areas with trees, green roofs, and green facades can reduce the energy consumption of conditioning air by 20%;

  10. (10)

    Increasing vertical planting or greening by 10% in a city led to reducing the energy value of heating and cooling capacity by 5 to 10%.

  11. (11)

    At peak times, the indoor temperature ranges from 45 to 47°C in the case of SGWs, which is far from the thermal comfort ranges of 26 to 28°C. Hence, that indicates that although the SGW reduced the cooling load by a certain amount, there is still a need for mechanical cooling besides this reduction. Nevertheless, the advantage comes from lowering the energy consumption of the air conditioning system, which continuously reduces the mechanical cooling system dimensions, resulting in lower capital and operating costs for the cooling system over the building’s life.

Comparative analysis of application classes of SGWs

Based on the above demonstration, the study conducted an analytical comparison among the SGWs, as in Table 4. It aims to identify and interpret their classes for considering them as new methods of saving energy, reducing the heat island phenomenon, encountering deterioration climatic, and controlling the building performance: thermal, environmental, acoustic, and visual. In addition, it would aid in understanding the SGWs application, using them, and integrating the natural environment with the built environment. The analysis will depend on the features, considerations, and sustainability aspects collected and itemized, as shown in Tables 1 and 2 (11 points), to be a guideline to specially select and design the appropriate system for the building’s case.

Table 4 The analytical comparison of application classes of SGWs [7, 9, 11]

A proposed framework to design, employ, evaluate, and develop a system of the green wall (SGW)

Accordingly, a framework can be formulated or devised as an execution plan to select and design the most suitable SGW according to the state and circumstances of the studied building. Furthermore, it is a tool to implement and evaluate SGW and work to develop it after completing its growth, as in Fig. 6, which consists of seven stages. Consequently, assessing the selected system performance can predict the full performance capabilities of the building under this living system:

  1. (1)

    The first stage (identification) is to identify the building circumstances or state if it exists or is in the design stage, where each case has unique considerations and actions, as shown in Table 5. It should be relied on the indicators of the three aspects of sustainability, as in Table 2, to ensure the success of SGWs while following their design considerations and activating the features and technical elements of such systems in the third stage.

  2. (2)

    The second stage (selection) is to select the appropriate system, as in Table 4.

  3. (3)

    The third stage (design) is to design the chosen system, as in Table 5. It is the stage of considering Tables 1 and 2 to ensure the success of such systems.

  4. (4)

    The fourth stage (evaluation): after the identification, selection, and design stage, the performance evaluation of this chosen system comes. The SGW evaluation is another major challenge after applying it to the facade. This adaptive facade type that reacts to outdoor influences and indoor needs requires an evaluation framework for its reliable use in new buildings or existing building renovation. The performance evaluation of the SGW is a standard that must be considered and established for predicting the full performance capabilities of this living system and how is the dynamic behavior of this system predictable and quantifiable. Improved standards and rigorous testing of components and dynamic behavior of any SGW are needed. That requires a combination of assessment methods and tools with new approaches to explore such green systems in the context of actual operation with buildings. It can rely on five axes that include a set of standards and performance indicators proposed for them, as shown in Fig. 6.

  5. (5)

    The fifth stage (implementation) is to apply and execute the SGW, whether the building is existing or new (design stage).

  6. (6)

    The sixth stage (evaluation after implementation) is the penultimate stage that must be executed either after 3 to 5 years as the maximum time limit starting from implementing the SGW or when covering the entire façade, whichever is closer to assessing the actual performance of the system when completed on the studied facade. This stage depends on the third and fourth stages to specify the criteria, considerations, indicators, features, elements, and axes utilized in the evaluation after implementation.

  7. (7)

    The seventh stage (development) is to develop and treat the fully executed SGW based on the fourth and sixth stages to put the results into effect and make the required adjustments.

Fig. 6
figure 6

The proposed framework of employing and dealing with systems of green walls (SGWs) efficiently to be the chosen system is the most suitable. The framework provides an implementation strategy for selecting and designing the most appropriate SGW for the circumstances and condition of the examined building, as well as a tool for implementing, evaluating, and working to improve SGW when it is completed

Table 5 Considerations and actions according to the building’s condition, the second stage will depend on them to select SGW [6,7,8,9, 11, 13, 16, 17]

Inspect the feasibility and suitability of the proposed framework of SGWs

The practical survey aims were:

  1. (1)

    To ascertain the feasibility and significance of the concluded framework

  2. (2)

    To measure the suitability of the axes and stages of the proposed framework

  3. (3)

    To explore if the concluded framework needs to develop or add another stage or benchmarks

  4. (4)

    To appraise the competence of the application mechanism when handling these systems (SGWs) during all their life stages to be the most convenient

Through nine questions were seven questions related to the seven-stage of the deduced framework, as in Table 6, one question about the feasibility and significance of the concluded framework, and one question concerning the competence of the application mechanism. These questions ordered in the questionnaires were presented to the specialists and practitioners of the design and execution of green and sustainable buildings. Seventy-three persons were invited. Ultimately, only sixty-two (18 academics, 24 architects, and 20 practitioners) engaged in the survey study. Questionnaire answers relied on a 5-point Likert scale (5= strongly agree and 1= strongly disagree). They were examined and analyzed by the Statistical Package for the Social Sciences (SPSS). The descriptive statistics were computed and employed to interpret, organize, explain the data, and investigate frequency distributions of the responses through the questionnaires to identify and rate the significance of the stages and axes, besides the feasibility and mechanism. Finally, the statistical inference test was run through the chi-square test, as in Table 7.

Table 6 Questionnaire questions were relied on in the survey study
Table 7 The descriptive statistics and chi-square test of the practical survey results of the questionnaires were computed by SPSS

The matched non-parametric chi-square test was utilized in this survey study because the not completed parametric hypotheses and the variables were measured on the ordinal scale to diagnose and explain the results. The chi-square test describes and demonstrates convergence and agreement in many of the responses; in case they tend more to any of the five points used by the Likert scale in the questionnaires. The chi-square test inspects and demonstrates the differences and agreements between expected frequencies and those observed or collected in surveys and questionnaires, whether a coincidence or an existing relationship among the studied variables [19]. Therefore, if the number of frequencies of responses related to a specific answer grows notably, the significance level and confidence degree in the results will increase.

Results and discussion

The framework with its seven stages, Fig. 6, is a tool that assists in achieving one of the strategies or methods of treating building envelopes and providing solutions to environmental problems in buildings. These stages are considered a logical sequence for dealing with such treatments that are sustainable treatments and friendly to the environment. Also, they support the thought, concept, and trends of sustainability. This framework optimizes the thermal performance of the building and its envelope, mitigates the heat island phenomenon, achieves human thermal comfort, and minimizes energy consumption in the shade of no strategy or implementation plan to deal with such treatments (SGWs). The evaluation stage of the comprehensive performance of these systems (SGWs) at any stage during their life cycle comes to ascertain the effectiveness and comprehensiveness of this proposed framework as an implementation plan and a supportive methodology for dealing with envelopes, whether walls or facades. The efficiency of the devised framework is its reliance on design considerations. In addition, the features, principles, and technical elements of such systems and the indicators of the three aspects of sustainability that were deduced, collected, and classified from previous studies as in Tables 1 and 2 must be considered. Also, the green design standards must be followed for the success of SGWs when specifying the SGW type and its construction system according to the conditions, state, type, and function of the building, as in Table 5. Making an analytical comparison among SGWs was to identify, collect, and itemize the application classes of SGWs, as shown in Table 4, to be an aid for the designer in understanding the application of these systems, encourage their subsequent application, and integrate the natural environment with the built environment.

The performance of the selected system is evaluated based on five axes: energy and environmental performance; building and service management; preventive performance; maintenance, durability, the life cycle of the building, and the system itself; user experience and control. These axes are the most important results of the study to predict the full performance ability of such living systems. Consequently, the SGW performance evaluation stage constitutes a significant challenge, which is the fourth stage of the proposed framework. Such adaptive facades react to outdoor influences and indoor requirements that demand an evaluation framework for their reliable use in new buildings or renovations of existing buildings.

The possibility of applying and implementing these vertical green walls does not require high technologies and can be executed in developing countries. Their installation will harm buildings and users and bring opposite harmful effects indoors and outdoors, in case of absent supervision, engineering follow-up, and sufficient expertise, whether natural or constructed.

Through investigation and analysis, the two international experiments have the same variation of Egyptian climate to benefit from them while employing green wall systems during all stages of building:

  • They demonstrated that the vegetation covering a facade is effective at thermal, acoustic, and visual performance levels both indoors and outdoors and energy equilibrium.

  • The decrease in thermal energy resulting from penetrating solar rays is related to the thickness of the green wall system and the air cavity or the insulating space between the building and green wall system for one layer up to 37%, and with the five layers of paper up to 86%. The penetration measurement of the solar radiation of single-layer leaves equals 0.3, and for five layers of leaves equals 0.14.

According to previous studies, the electricity consumption is 5 to 10% used for cooling the increment of 0.5 to 3°C [5, 12]. Therefore, each decrease in the indoor temperature by 0.5 °C may reduce the electricity consumption by 8% of air conditioning in the summer. Also, vegetation can reduce energy consumption by 20%.

Studies have confirmed the exposure of vertical greening to many pests and insects for several reasons, and among the natural methods of pest control are the following [6, 12]:

  • Plants’ biological diversity

  • Using insect-repellent plants

  • Attracting predatory insects against agricultural pests

Many studies have addressed green wall systems regarding thermal performance; they have not considered operational and design performance over the system’s life and after completing its growth [4, 16]. That is what the study tried to bridge and embrace in the proposed framework by evaluating and developing the comprehensive performance of SGWs.

Previous studies have considered these systems as a group of elements and classifications put upon the facades [11, 12, 17]. Nonetheless, they did not handle them as architectural treatments have environmental and parametric features that need mechanisms and design approaches that consider their life cycle and final form.

Several studies have shown that indoor temperatures have become close to the thermal comfort of 26–28 °C [5, 6, 10]. That minimizes the dimensions of the cooling system generally and decreases the capital and operating costs during the building life.

Previous studies have indicated that increasing vertical greening by 10% in cities reduces overall heating and cooling capacity by 5 to 10% [8, 12].

Conclusions

The main conclusion is the proposed framework to employ, utilize, and deal with systems of the green walls (SGWs) efficiently while choosing, designing, implementing, evaluating, and developing such systems to be the most suitable according to the circumstances and the state of a building. These SGWs improve the environmental and thermal performance of the building envelope that affects indoor environments and human comfort, conserving energy, rationalizing consumption, and reducing heat islands. This proposed framework is structured and built in seven sequential and overlapping phases to ensure succeeding SGWs. Consequently, the framework considers a mechanism, an execution plan, and a tool for evaluating SGW and working on its development throughout the building life, as a guideline to understand applying these systems, encourage their utilization, and integrate the natural environment with the built environment. The analytical comparison of the application classes of SGWs was conducted based on the features, considerations, and indicators of the three sustainability aspects associated with them, which were collected and itemized within the study sections. Also, the set of the concluded results and considerations from two international experiments had the same conditions as the Egyptian climate was discussed and investigated to benefit while choosing, designing, and evaluating SGW. The indoor and outdoor effects of SGWs were analyzed regarding the thermal performance, buildings’ behavior, and surrounding environment and then classified into positives and negatives, whether indoor or outdoor, to emphasize the concept and role of SGWs. Accordingly, the vegetation becomes efficient concerning the buildings’ performance (thermal, environmental, visual, acoustic, and economic), lowers the environment’s temperature, increases the green areas, and achieves users’ thermal comfort. Also, the negative impacts will be lower resulting from global climate change, energy consumption and electricity in the construction industry, and management and operation. There will be opportunities for further research and surveys on how to raise and improve the comprehensive performance of buildings or projects through these green systems and technologies for processing envelopes. Furthermore, there will be a need to adopt more effective methods for comprehensively handling such performance by relying on renewable energy sources and sustainable concepts and achieving the maximum possible savings in energy sources.

Availability of data and materials

All data, models, and code generated or used during the study appear in the submitted article.

Abbreviations

SGW:

System of green wall

SGWs:

Systems of green walls

Bioshader:

In Southeast UK, two—climbing plant canopies—were installed in an existing project and observed over 2 years

LAI:

The leaf area index. This dimensionless quantity defines plant canopies, the one-sided green leaf area per unit of ground surface area

SPSS:

Statistical Package for the Social Sciences. SPSS Statistics is a software package used for interactive or batched statistical analysis
