An experimental study of group-by and aggregation on CPU-GPU processors

Abstract

Hash-based group-by and aggregation is a fundamental operator in database systems. Modern discrete GPUs (graphics processing units) have been considered to accelerate the performance. However, the data transfer through the PCIe (peripheral component interconnect express) bus would reduce gains. On recent architectures, the GPU and the CPU (central processing unit) are built into the same chip which removes the data transmission and offers new performance opportunities. Yet there has been no systematic analysis of grouping and aggregation algorithms on such architectures. In this paper, we study the behaviors of various hash-based grouping and aggregation methods on coupled architectures to provide meaningful guidelines. We conduct an extensive experimental study and analysis on the single CPU, the coupled GPU, and both processors. Six dimensions are considered in analyzing the hashing methods carefully: (1) hashing scheme, (2) hash function, (3) data size, (4) group cardinality, (5) load factor, and (6) data distribution. Two additional dimensions are also explored: (7) shared and independent hash tables and (8) running on single processors and co-processing. We hope the results in our study could help database researchers to choose the right direction in terms of algorithm design and system optimization.

Introduction

Group-by and aggregation is an important and dominant primitive in analytical queries. Hashing is a common approach to implement the grouping operator. There has been a lot of research on hashing grouping on multi-core CPUs [1–3]. With the advent of the GPU accelerator, many efforts have appeared to accelerate the operation by offloading the workload to the GPU [4–7]. However, the discrete GPU is connected to the CPU and system memory through a PCIe bus. The data transfer over PCIe usually becomes the bottleneck to hamper the performance improvement [8–10]. In recent years, a new CPU-GPU architecture attracts growing interest of researchers, where a GPU coprocessor is integrated into the CPU chip which forms coupled CPU-GPU architectures. On this architecture, the CPU and the integrated GPU share the same memory and data transmission through the PCIe bus is eliminated. Researchers have focused on leveraging the computing power of the coupled GPU in database systems [4, 7, 11–13]. Despite previous work, as far as hash grouping and aggregation is concerned, there does not exist an in-depth study on coupled CPU-GPU architectures.

In this paper, we carefully study hash-based group-by and aggregation in a multi-dimensional space on such heterogeneous architectures. We aim to investigate answers to the following questions: (1) How well do various hashing methods perform on the CPU and the emerging coupled GPU? (2) What are the most efficient methods and when should we consider them? (3) Whether and how does the coupled GPU help to increase the overall performance? (4) Where does time go when the group-by and aggregation operator is executed on heterogeneous architectures?

To this end, we conduct a detailed experimental study and analysis from a variety of dimensions. (1) Hashing scheme. Linear probing, two versions of chained hashing and two versions of Cuckoo hashing are considered. (2) Hash function. Two representative hash functions Multiply-shift and Murmur hashing are used and compared. (3) Data size. We consider different data sizes to examine the effects when the data is rather small and large. (4) Group cardinality. We observe the performance of hashing methods for a variety of group numbers. (5) Load factor. Six load factors between 25% and 90% are explored. (6) Data distribution. We consider two data distributions: uniform distribution and Zipf distribution. (7) Hash table. Shared and independent hash tables are investigated. The shared hash table is accessed by all the work items. If hash tables are independent, each work item has its own hash table and a global hash table is built at last. (8) Processor. We examine the performance of hash grouping and aggregation on the CPU and the coupled GPU to understand the ability of heterogeneous processors. In addition, two strategies including inter-operator parallelism and intra-operator parallelism are exploited in co-processing to explore potential benefits from the coupled architecture. Our main goal is to acquire a comprehensive understanding of hash-based grouping and aggregation on modern hybrid architectures, which could guide researchers to design and optimize future database algorithms and systems.

The remainder of this paper is organized as follows. First, we briefly describe the coupled CPU-GPU architecture, OpenCL, three kinds of considered hashing schemes and two hash functions. Then, we give our methodology and the experimental setup. Later, the experiment results and discussion are presented. Finally, the related work is described and we conclude our work.

Preliminaries

In this section, we first describe the coupled CPU-GPU architecture and the OpenCL standard. Then, we introduce three types of hashing schemes and two hash functions examined in this paper.

Coupled CPU-GPU architectures

The coupled CPU-GPU architecture is a hybrid architecture which integrates the CPU and the GPU in the same chip. On traditional discrete architecture, the GPU is equipped with a great number of cores and has excellent computing power. However, data need be transferred between the main memory and the GPU memory through the PCIe bus. This has become a nonnegligible overhead when using the discrete GPU as an accelerator. On the emerging coupled architecture, the integrated GPU has much fewer computing units compared with the discrete GPU and is not as powerful as the latter. But the integrated GPU shares the same physical memory and the last level cache (LLC) with the CPU which reduces the data transfer cost between two processors since the slow transfer via the PCIe bus is not needed. It is meaningful to explore the benefits from the hybrid architecture in applications.

Figure 1 shows the architecture of modern Intel processors. Intel supported its integrated architecture on the processors such as Ivy Bridge. We use Intel Core i7-9700K as the major experimental platform in this paper which is the 9th generation processor and includes an integrated graphics processor, Intel UHD Graphics 630. The hardware configuration is described in Table 1. The CPU has 8 cores and L1, L2, and L3 cache. L3 cache of size 8 MB (Megabyte) is the last level cache which could also be used by the integrated GPU. On some laptop processors, an embedded dynamic random access memory (EDRAM) is supported as a larger cache. The GPU contains 24 Execution Units (EUs) and each EU can be regarded as a multithreaded SIMD (single instruction multiple data) processor. Usually, the CPU is much faster than the integrated GPU and the GPU clock speed of Core i7-9700K is 350MHz. However, the GPU could provide more parallel computing resources and the actual computational capability will be examined in this paper.

Fig. 1

Intel CPU-GPU architecture

Table 1 Hardware parameters

OpenCL

The OpenCL (Open Computing Language) [14], developed by an open and non-profit consortium Khronos Group, is a standard and framework for parallel programming on CPUs, GPUs and other processors and accelerators. It specifies a C-like language and APIs (application programming interfaces) to write and launch programs across various platforms. The same code in C and OpenCL could be executed on either CPUs or GPUs, which facilitates the software design on heterogeneous architectures. Hardware vendors like Intel, AMD, and NVIDIA have supported the OpenCL standard by providing specific OpenCL implementations.

In the OpenCL model, there exist one host and one or more devices in computer systems. The host usually refers to the CPU where the host code could run. The host code is in charge of preparing and triggering OpenCL program execution on devices. The device covers a wide range of processors such as CPUs, GPUs and other accelerators. Each device contains more compute units and each compute unit is composed of more SIMD processing elements. The parallel work is submitted to devices by launching kernels which are coded in the OpenCL language. The instances of a kernel are broken up into work groups. Each work group includes the same number of work items and is scheduled to run on a single compute unit. Work items within the same work group are executed concurrently by processing elements and could synchronize with each other using barriers or memory fences.

Hashing schemes

When performing hashing, multiple keys may be mapped into the same value. How to handle key collisions is a problem. We study the performance of three kinds of hashing schemes: (1) linear probing, (2) chained hashing, and (3) Cuckoo hashing. Linear probing and Cuckoo hashing belong to the static hashing technique. The size of the hash table is fixed and if the hash table could not provide enough space, a new hash table has to be rebuilt from scratch. This is expensive and may be a factor which affects the use in practice. Chained hashing is a dynamic hashing scheme by maintaining linked lists which is able to resize the hash table without needing to rebuild the whole table.

Linear probing

Linear probing is a simple open-addressing hashing collision resolution technique. The used hash function is h(k, i) = (h^′(k) + i) mod S, where i represents the i-th probing, h^′(k) is an initial hash function, and S denotes the hash table size. The slot T[h(k, 0)] in the hash table T is first checked for a key k. If the slot is empty, the key is placed into it. Otherwise, the next free slots T[h(k, 1)], T[h(k, 2)], etc., are searched until an empty slot or the same key is encountered. The collision resolution technique is to probe through a set of alternate locations in the table in a cyclic manner.

The advantage of linear probing is its simplicity and sequential scanning. This method has been adopted in many studies [4, 5, 7]. The problem in this collision resolution is primary cluster [15], that is, a large group of consecutive slots are occupied when an empty slot needs to be searched for a key. The consecutive sequences form a cluster where keys whose hash values lie require excessive probing, which degrades the performance of linear probing. We will examine the performance of this scheme as one of the comparison methods in the experiments.

Chained hashing

Chained hashing is a classical method to deal with collisions, which is widely used in practice such as functions in C++ STL (standard template library) and Java [15]. Keys with the same hash value are placed in a bucket and all the slots in a bucket are linked together with a head pointer pointing to the first slot. The directory which stores the head pointers and pointers to the next slot in the linked list are extra space used by chained hashing compared with linear probing. When a collision happens, the corresponding bucket is traversed to judge whether the key has existed. If not, a new empty slot is added into the linked list of the bucket. The characteristics of the linked list bring two disadvantages: more memory space and irregular memory accesses. In order to reduce cache misses, a variant of chained hashing was presented in the previous study [15] where the directory is 24 bytes wide to keep key-value-pointer triplets so that one element could be directly stored in the directory and the linked list is not needed to be visited. In our study, we consider two versions of chained hashing: the standard scheme and the variant mentioned above.

Cuckoo hashing

Cuckoo hashing [16] is another type of open-addressing scheme, which maintains two hash tables T₀ and T₁ with their own hash function h₀ and h₁ in the simple version. Keys are stored in one of the hash tables. Every hash table is checked to find an empty slot or a slot containing the same key. If both tables have an empty slot, any of the two hash tables are chosen alternately to store the new key k. If neither of them has an empty slot in the corresponding location, the key k^′ in the slot T₀[ h₀(k)] in the first hash table is kicked out to make room for the new key k, which is inserted into the second hash table at location T₁[ h₁(k^′)]. If the location in the second table is not free, the existing key is evicted again to probe its location in the first table. The advantage of Cuckoo hashing is two accesses are required at most to find a key. However, the insertion process may end up in a cycle and no empty slot could be found for a key especially for high load factors. Increasing the number of hash tables is one of the ways to alleviate the problem. In our experiments, besides the traditional Cuckoo hashing with two tables, the version using four hash tables is also explored to check the performance. The hash functions Multiply-shift and Murmur hashing described later are used respectively by two hash tables. Besides them, two additional functions such as ((a×k + b) mod p) mod B with different parameters are utilized in the other tables.

Hash functions

Two representative hash functions are considered in our study which are widely used in practice: (1) Multiply-shift and (2) Murmur hashing. The detailed description is as follows.

Multiply-shift

Multiply-shift [17] is a universal hash function used in previous studies [7, 15] and the definition is:

$$ h(k) = (k \times r \ \% \ 2^{w}) \ / \ 2^{w - d} $$

(1)

where k is a w-bit integer, r is an odd w-bit integer, and d means the hash table is of size 2 ^d. The operator “/” could be implemented by a right bit shift by w-d positions. In our experiments, w is set at 32 that is keys are 32-bit integers, and r is an odd integer generated randomly.

Murmur hashing

Murmur hashing is a common hash function which is widely used in the literature [4, 5, 15]. This hash function is more complex than Multiply-shift and we use the Murmur3 implementation [18] for 32-bit keys in this paper with the finalization code shown as follows:

uint32_t fmix32 (uint32_t h) {

h $\hat {}$ = h >> 16;

h *= 0x85ebca6b;

h $\hat {}$ = h >> 13;

h *= 0xc2b2ae35;

h $\hat {}$ = h >> 16;

return h;

}

Methods

In this paper, we aim to understand how well a hash-based group-by and aggregation operator works on the new coupled architecture. The following group-by query is used as a representative example:

SELECT c1, count(c2), sum(c2)

FROM T

GROUP BY c1

There are two 32-bit integer columns c1 and c2 in a table T. The query calculates the count and sum aggregates grouped by c1. The column c1 provides the keys on which a hash table is built. Two aggregates are stored and updated with the establishment of the hash table. The study in this paper is also suitable for other algebraic aggregates like average, min, and max.

Load factors

We assume the group cardinality G is known in advance which actually could be estimated by the optimizer in a DBMS (database management system) and the hash table size S is set at a power of 2. The ratio G/S is considered as the load factor of the hash table. For linear probing a hash table has S slots, and for chained hashing, there are also S slots in total and the directory stores the same number of pointers. In Cuckoo hashing, the size of each hash table is the minimum power of 2 which is greater than or equal to S/2 or S/4. In our experiments, the total size of multiple tables is just equal to S because the quotient is exactly a power of 2. We examine the performance of various grouping methods with six load factors: the low load factors 25%, 35%, and 45% and the high ones 50%, 70%, and 90%, which cover a wide range of collisions. At low load factors, collisions will be rare and become apparent when the load factor is increased.

Parallelization strategies

Two parallelization strategies are adopted to design hash tables: shared and independent. In the first strategy, a single globally shared hash table among all the work items in different work groups is used to perform grouping. Concurrent updates to the same bucket or slot are resolved with atomic access primitives. Compared with the independent strategy, the memory requirements of a shared table are reduced. However, on the other hand, contentions may cause a performance problem especially when collisions occur often. The second strategy is a simple parallel approach and each work item aggregates into its own hash table. The advantage is that contentions on the same data are eliminated and expensive synchronization primitives are avoided. However, more memory space is needed to store many hash tables and a subsequent phase is required to merge the independent tables into a global one. We consider the shared approach when using linear probing and chained hashing. The independent hash table is combined with all the hashing schemes. The reason why we do not adopt a shared table for Cuckoo hashing is that for OpenCL there is no synchronization between work groups and it is hard to ensure the correctness of updates and accesses to a hash table. When Cuckoo hashing was implemented with a shared hash table, accesses to each sub table by all the work items from different work groups needed to be synchronized; otherwise, faster work items would modify any sub table which led to wrong results. However, the global synchronization operation of work items between work groups is not provided by the current OpenCL implementation. Thus, the shared hash table will not be combined with the Cuckoo method.

Co-processing

Since there exist two processors on a chip now, it is reasonable to utilize two kinds of computing resources together besides assigning a query on a single processor. In this work, we investigate task and data parallelism models of co-processing. When the task parallelism model is used, the CPU and the coupled GPU handle different group-by and aggregation queries simultaneously which forms a kind of inter-operator parallelism. The queries are of the same form as the representative example illustrated previously with the varied tuple number or group count. If intra-operator parallelism is adopted, the CPU and the GPU process part of data at the same time to build a global shared hash table. The other operations in the operator are performed by a separate processor.

Although the coupled GPU provides the extra computing ability, it adds to the pressure on the memory bandwidth since the CPU and the GPU access the unified memory. The concurrent visits to different memory regions may also bring the cache contention which results in more cache misses. In addition, the execution on the GPU acquires the control and coordination of the CPU which may affect the overall co-processing performance to some extent. In view of the above factors, we study the co-processing strategy in our experiments to explore the performance gains from the hybrid architecture.

Implementation

The implementation of the group-by operator adopts a column-based model, which is true for a columnar database suitable for analytical query processing. The raw data, intermediate structures, and the results are all stored by columns. The raw table is generated as a file on the disk and read into memory in advance.

The major process consists of four phases and involves three kernels. The first phase is to create and initialize data structures used in the building step. For linear probing and Cuckoo hashing, three arrays are allocated to store the distinct group-by key, the count of tuples and the sum of values respectively. For the traditional chained hashing, two extra arrays are needed in a hash table to keep the head and next pointers which are represented by array indexes in our implementation. Figures 2 and 3 show the structure and implementation of linear probing and the classical chained hashing. The variant of chained hashing relates three other arrays to the directory which are used to place the first key, count and sum directly. The work in this phase is done by the CPU.

Fig. 2

Linear probing structure

Fig. 3

Chained hashing structure

The second phase is to construct shared or independent hash tables by launching a kernel build_hash_table on the CPU or the coupled GPU or both of them in co-processing. The concrete implementation of the kernel is associated with different methods. Algorithm 1 shows the pseudo-code of linear probing with shared tables as an example. The kernel acquires the global number of work items that is how many work items will deal with respective tuples simultaneously (Line 1). The value is the same for all the work items. Then, each work item gets its item ID which ranges from zero to the number of work items minus one (Line 2). Every work item accesses the tuples at intervals of the work item count (Line 3). For every tuple, the kernel calculates the bucket number based on the grouping key and checks the corresponding bucket until the insertion process is finished (Line 4 and Line 5). If the bucket is empty, the key will be filled in the bucket using the atomic_cmpxchg function (Line 7). If the bucket is set successfully or it has been set with the same key by another work item, the aggregates are updated atomically (Line 8 and Line 9). Otherwise, the next bucket has got as a candidate and will be examined later (Line 12). If the bucket is not empty at the beginning, there are two cases. One is that there exists a key which is the same as the grouping key to be inserted, the kernel revises the count and sum values directly (Line 14). Otherwise, the bucket has been occupied by another key and the kernel checks a new bucket to try to perform the insertion operation (Line 17). Suppose there are four work items and the first four tuples in the table are 〈1, 10 〉,〈2, 20 〉,〈3, 30 〉 and 〈4, 40 〉. An illustration of linear probing is shown in Fig. 4. The build_hash_table kernel is executed by all the four work items and each work item handles one tuple. If 〈4, 40 〉 has the same initial bucket number as 〈1, 10 〉, the fourth work item has to use the next free bucket to resolve the collision.

Fig. 4

An illustration of linear probing

After the second phase, a shared hash table or multiple separate hash tables containing the distinct keys and their aggregates are established. In order to get the final results from the hash table, two subsequent stages are needed. The third phase differs in the functions for the two parallelization strategies. If a shared hash table is used, the second kernel gather_item_num counts the number of keys a work item will access in the last phase. By calculating a prefix sum on the numbers, each work item knows the offset from which it could put data in the result array. Then, in the third kernel aggregate_result, the final aggregation results are acquired and filled into arrays by the same work items in parallel. If the independent strategy is adopted, the last phase completes the similar function by executing the aggregate_result kernel. The difference lies in the second kernel gather_item_num. Before counting the key number for every work item, a global hash table is needed to be generated.

For two variants of chained hashing, the head pointer of keys belonging to a global bucket has the same position in each local directory. Thus, in the process of producing the unique hash table, every work item consolidates the corresponding sub-buckets in all of the independent hash tables. The sub-buckets in the later tables are merged into the ones in the first hash table. If keys are equal to each other, two aggregates are updated. If the key only exists in the later hash table, the slot is inserted into the appropriate location in the linked list. After a work item finishes the current bucket, it turns to the next bucket over an interval of the global size of work items. For linear probing and Cuckoo hashing, keys in a global bucket may be not in the same position in different local hash tables. A parallel method similar to the merge-sort is utilized. Each work item merges two adjacent local hash tables into an intermediate hash table. Two adjacent intermediate hash tables are processed by a work item further. Until the end, a final global hash table is established.

The second and third kernels could run on either the CPU or the coupled GPU. In our experiments, we will examine how the time is spent from the perspective of different phases to understand the performance of various methods on various platforms.

Experimental setup

Our experiments are conducted on Intel Core i7-9700K unless noted otherwise. The major hardware parameters are shown in Table 1. The machine is equipped with a 16-GB (Gigabyte) memory and Microsoft Windows 10. The code is implemented in C and OpenCL and compiled by Visual Studio 2017 with -O2 enabled in 64-bit mode. The raw data is read from disk into the memory and the time is not included. The OpenCL initialization overhead such as creating the context, queue, and kernels and building the program is not considered since these operations need be executed only once and the overhead could be amortized over queries. Each group-by and aggregation is run four times. The first run is used to exclude the warm up penalty and the average value based on the following three executions is used as the final time.

If the algorithms work on the CPU, the number of work groups is set to the core number of the CPU which is 8 on our platform. The number of work items in each work group is set to 1. Thus, the global size on the CPU is 8. For the coupled GPU, the number of work groups is 32 and each work group has 32 work items to make full use of computing resources. All the data are 32-bit and there are two kinds of data distributions. The first is uniformly distributed and the number of keys in each group is similar. The second is skewed and generated using a Zipf distribution with the parameter set to 3, which means the most frequent value occurs in about 80% of the data.

Results and discussion

In this section, we provide the experimental results and performance analysis of various methods in grouping and aggregation. We use “Linear” to represent linear probing, and “Chain” and “Chain+” for the standard chained hashing and the variant of chained hashing. The terms “Cuckoo2” and “Cuckoo4” denote Cuckoo hashing using two hash tables and four hash tables respectively. “I” and “S” represent the independent and shared hash tables respectively. “CPU” and “GPU ” denote the processor where the algorithm runs. In addition, “LF” is used to indicate the load factor. If not specified, chained hashing mostly refers to the standard chained hashing scheme, Multiply-shift is used as the hash function and the data is uniformly distributed.

Effects of group cardinalities

In the first set of experiments, we analyze the performance difference among 11 different configurations from five hashing schemes, two parallelization strategies and two processors with changing group cardinalities. Figure 5a to c show the execution time when there are 2²¹ (2M) tuples whose size is relatively small. Figure 6a to c give the performance when the data size is set to 2²⁵ (32M) which is rather large. The values of X-axis represent the hash table size from which the actual group cardinality could be derived by multiplying by LF. We tested various methods under six load factors 25%, 35%, 45%, 50%, 70%, and 90%; however, due to the limited space, some of the similar results are omitted and we only present the results at the representative load factors in this paper. In addition, for linear probing, chained hashing and Cuckoo hashing, the execution times with independent hash tables on the coupled GPU are omitted in these and the following figures in order to show the performance difference of the other methods clearly because their times are much larger than the counterparts on the CPU, which demonstrates that independent hash tables are not suitable for the coupled GPU.

Fig. 5

Performance as the number of groups changes with different load factors when the data has 2²¹ (2M) tuples

Fig. 6

Performance as the number of groups changes with different load factors when the data has 2²⁵ (32M) tuples

From the figures, we could obtain the following observations:

First, when the data size and group cardinality are small, all the methods show a relatively stable performance and the independent strategy performs better than the shared one, as found in the left part of the curves in Fig. 5a, b and c. When the group cardinality becomes larger, the execution time goes up drastically. This implies the group cardinality does not affect the overall time too much within a certain range for the small data set. Outside the scope, a larger group cardinality, which means a bigger hash table when the load factor is fixed and more keys are stored in the table, has a great influence on the performance. Moreover, multiple independent hash tables bring a larger performance degradation than the shared table with the increase of the group count. Thus, the shared parallelization strategy should be considered as the primary choice for a larger data size or group cardinality. In Fig. 5b, the shared approach could achieve a speedup up to 6.9 and 3.9 on the CPU for linear probing and chained hashing respectively. In Fig. 6b, the maximum speedup is 6.5 and 5.7.

Second, two variants of Cuckoo hashing are slower than linear probing and chained hashing in most cases when using the independent hash table. In the results, in order to make the difference clear, some large time values are not plotted. Cuckoo hashing on two tables only works when the load factor is 25%. It begins to fail in some cases due to too many tries back and forth when the load factor is set to 35%, 45%, and 50%. If the load factor goes up to 70% and 90%, the method could not run at all. The version of Cuckoo hashing on four tables performs slower than that with two tables while it is feasible for a high load factor except 90%.

Third, linear probing and chained hashing on the CPU and the coupled GPU show the following behaviors: when the data size is 2M, the CPU algorithms run faster than the GPU counterparts except in several cases when the number of groups is large; if 32M tuples need to be processed, the trend is more obvious: the methods on the CPU perform better than those on the GPU when the group cardinality is low and the GPU methods show better performance if the group cardinality is increased. Thus, the coupled GPU has performance gains under time-consuming scenarios which makes it more useful to consider the accelerator in the grouping operator. In addition, linear probing outperforms chained hashing in most cases on either of the two processors. The performance gap of two kinds of hashing schemes on the CPU is larger than that on the GPU which sometimes is very close.

Fourth, in order to distinguish the performance clearly, two versions of chained hashing are illustrated separately in figures. We could find that for the configurations that run fastest, the two variants show similar performance. For example, in Fig. 7a, when the group cardinality is not bigger than 2¹⁶, Chain-I-CPU is close to Chain+-I-CPU. When the number of groups is increased, the best methods Chain-S-CPU and Chain+-S-CPU achieve a close performance. This similar phenomenon could also be observed in Fig. 7b. In addition, on the whole, for the 2M data the standard chained hashing is a little better and when the data size is 32M, the variant of chained hashing demonstrates the advantage in many cases.

Fig. 7

Comparison between two kinds of chained hashing as the number of groups changes with different data sizes

Fifth, there are clear breaking points where the execution time starts to increase linearly with the problem size especially for the methods using the independent hash tables. The size of hash tables becomes larger with the increase of the number of groups. For the independent strategy, every hash table grows exponentially and more memory space is needed. Thus, the increase of the group cardinality will lead to more LLC misses which reduce the performance. Take Fig. 5b for example, when the value on X-axis is less than or equal to 2¹⁵, it is hard to detect LLC misses when Intel VTune Profiler, a performance analyzer Intel provides, is used to profile Linear-I-CPU. When the value is set to 2¹⁶,2¹⁷ and 2¹⁸, the corresponding miss count is 140,000, 420,000, and 840,000, which may explain the occurrence of the breaking point.

Effects of data sizes

In the second set of experiments, we compare various methods with the number of tuples varied. The hash table size is set to 2¹¹ and 2²¹ respectively. The group cardinality responds to the change of the load factor. For space reason, the results at load factors 25%, 50%, and 90% are displayed in Figs. 8a to 9c. There exist 512, 1024, and 1843 groups in Fig. 8a, b and c respectively. The maximum number of tuples is 2²¹. The group cardinality is 524,288, 1,048,576, and 1,887,436 in Fig. 9a, b, and c respectively, and the data size reaches 2²⁶.

Fig. 8

Performance as the number of tuples changes with different load factors when the number of groups is set at 2¹¹ * LF with the hash table size of 2¹¹

Fig. 9

Performance as the number of tuples changes with different load factors when the number of groups is set at 2²¹ * LF with the hash table size of 2²¹

In the former group of figures where the data size and group cardinality are relatively small, the algorithms using the independent strategy are the top performers and the GPU methods offer the worst performance in most cases. The feature of Linear-S-CPU and Chain-S-CPU is that they have similar performance which is competitive with the best performers at the beginning and drops significantly with the increase of the data size. When the data size is 2²¹, the shared CPU and GPU methods meet together. Cuckoo hashing does not work when the load factor is 90% and is slower than the other two hashing schemes for larger data sizes. In Fig. 9a to c, it could be pointed out that the four shared methods perform better than the independent ones. All the curves are in the upward trend in the execution time when the data size is increased. In terms of load factors, when the load factor is 25%, the four shared approaches show rather similar performance, and Chain-S-CPU falls behind obviously when the load factor goes up. A small gap among Linear-S-CPU, Linear-S-GPU, and Chain-S-GPU also begins to appear, and linear probing is slightly faster. The difference of two versions of chained hashing is shown in Fig. 10a and b. The behaviors are similar to those described above. When the data size is large, Chain-S-CPU is affected by increasing load factors. The other three shared methods are close and Chain+-S-GPU performs slightly better.

Fig. 10

Comparison between two kinds of chained hashing as the number of tuples changes with different hash table sizes

In Fig. 8, there are no LLC misses since the data size and group cardinality are small. There exist breaking points for Linear-S-CPU and Chain-S-CPU because their retired instructions are increased with the number of tuples. For example, in Fig. 8b, when there are 2¹⁵,2¹⁶,2¹⁷,2¹⁸, and 2¹⁹ tuples, Linear-S-CPU executes 720,000, 1,440,000, 3,240,000, 5,400,000, and 12,240,000 instructions respectively. The CPI (cycles per instruction retired) is in the range of 6.7–9.5. As a result, the execution time increases approximately linearly with the problem size.

So far, we could derive the following results from the two sets of experiments:

(1) The shared parallelization strategy is suitable for large data sets or group cardinalities, in other words the heavy workload. If the data size and group cardinality are small, the independent strategy works well.

(2) The coupled GPU on the hybrid architecture could help to increase the grouping and aggregation performance, which performs better for the time-consuming workload. Offloading the task to the coupled GPU is an option worth considering.

(3) Linear probing and chained hashing on the CPU are close to each other when the independent strategy is used to acquire good performance. When the shared hash table is adopted: linear probing on the CPU performs better than the CPU chained hashing in most cases and the gap is obvious with the increase of the group cardinality and load factor; for large data sets and group cardinalities, the GPU linear probing is competitive with and even slightly better than the CPU counterpart; chained hashing on the GPU is an attractive method, which is similar to the GPU linear probing and in the meantime it is a dynamic scheme.

(4) Cuckoo hashing is not an ideal candidate and slower than linear probing and chained hashing. Using four tables could increase the practicability of Cuckoo hashing in terms of load factors; however, the performance decreases.

(5) Neither of the two versions of chained hashing is the absolute winner. From the perspective of the best performance that could be provided, two methods perform similarly. Considering the extra memory requirement of the variant of chained hashing, we only present the standard chained hashing in the rest of this paper.

Effects of hash functions

In the previous two sets of experiments, Multiply-shift is the primary hash function. In the third set of experiments, the performance of Murmur hashing integrated with six major grouping methods is examined to show the effects of different hash functions. In order to see the gap clearly, the ratio of two execution times occupied by a certain method using Multiply-shift and Murmur hashing respectively is shown. The ratio larger than one indicates that Murmur hashing performs better than Multiply-shift. Due to space limitation, only the results when the load factor is 50% are illustrated in Fig. 11a to d. Tables 2 and 3 give the values in the form of m/n where m is the number of ratios greater than one and n the number of points that lie on the line. “L-I-C” is used as a shorthand notation for Linear-I-CPU, and so on.

Fig. 11

Time ratios of various methods combined with Multiply-shift and Murmur hashing

Table 2 The performance of Murmur hashing on data sets of different sizes

Table 3 The performance of Murmur hashing with groups of different numbers

The main observations are as follows:

(1) Multiply-shift outperforms Murmur hashing in most cases. Considering all the test scenarios in Tables 2 and 3, only in 22% cases Murmur hashing runs faster;

(2) Even if Murmur hashing is better, the performance gap between the two hash functions is much narrower than the performance degradation it brings in other cases;

(3) A pattern could be identified loosely that is the larger the load factor, the worse performance Murmur hashing will produce compared with Multiply-shift.

Thus Multiply-shift is a good candidate which is used in other experiments.

Effects of data distributions

In the fourth set of experiments, we compare six algorithms on the skewed data which obeys the Zipf distribution. In order to fully understand how these different methods perform when the group keys are skewed, the data sets are generated with the parameter of 3, which means that 80% of the tuples belong to one group. Under these circumstances, the actual group cardinality is much smaller than the expected one due to the characteristics of Zipf’s law. In Fig. 12a to d, the values on X-axis and the axis title represent the parameters used to produce the test data sets which finally contain several hundred distinct keys. The tuple counts are the same with those in the previous experiments. In the case of the same hash table size, the number of collisions is reduced greatly.

Fig. 12

Performance of various methods on the skewed data which obeys the Zipf distribution with the parameter of 3

From the figures, it could be found that the independent strategy combined with linear probing and chained hashing shows the best performance in most cases. The reason may be that the number of groups is significantly less than that on the uniform data. Many tuples are associated with one key. The independent strategy demonstrates its superiority on the low group cardinality. The performance in the third figure is similar to that in Fig. 8b which is reasonable since there exist fewer groups in the original test data. Using the shared hash table, linear probing and chained hashing on the GPU are faster than the CPU versions in many cases. Sometimes as shown in the first two figures, the two methods on the coupled GPU become the best candidates and we will investigate the reason in the next section.

Time analysis

Before the time analysis, we first give the standard deviation in calculating the average execution time on three runs in Table 4. The workload denoted by “Wi” includes the previous uniform and skewed data sets where the load factor is set to 50%. For example, “W0” corresponds to the workload in Fig. 5b. For each algorithm, the standard deviation at each point in the figure is first acquired and then the average value is used to represent the standard deviation under the workload. From the results, it could be found that the more the execution time, the larger the standard deviation is. For skewed heavy workloads such as W5 and W7, the shared strategy especially on the coupled GPU produces a bigger standard deviation. In addition, linear probing is more stable than chained hashing in most cases.

Table 4 The standard deviation

Every grouping and aggregation algorithm is composed of four phases three of which are implemented by kernels. We break the execution time down to the time spent on each phase to exhibit the performance bottleneck. Figure 13a to d show the time breakdown in four cases which include two points (2¹⁸ and 2²⁴ groups) in Fig. 6b and two (2²¹ and 2²⁶ tuples) in Fig. 9b. Figure 14a to d are the results on the skewed data. In the figures, “build”, “gather” and “aggregate” represent three kernels respectively, and “other” mainly refers to the process of creating and initializing data structures.

Fig. 13

Time breakdown in four cases which include two points (2¹⁸ and 2²⁴ groups) in Fig. 6b and two (2²¹ and 2²⁶ tuples) in Fig. 9b

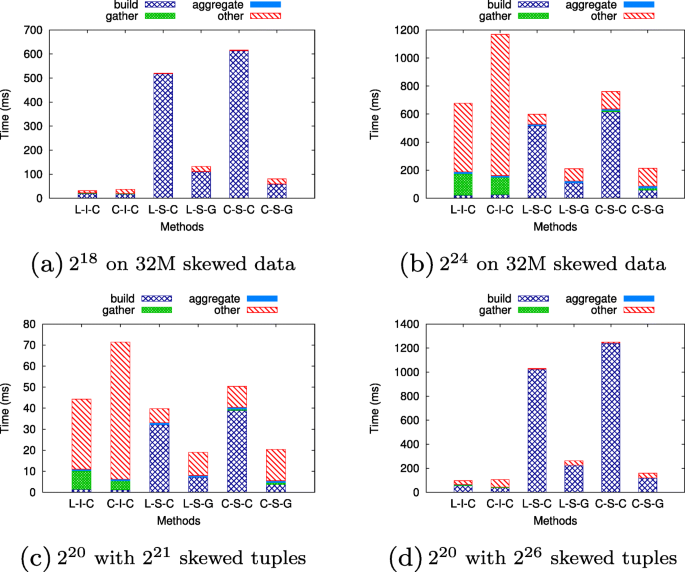

Fig. 14

Time breakdown in four cases on the skewed data

For the methods using the shared strategy, the first kernel build_hash_table that builds the hash table dominates the total execution. For the independent strategy, the first kernel is not the only time-consuming operation. When the hash table size is larger, the independent strategy spends more time on the first phase (“other”) since multiple hash tables are needed to be created, which could be observed in Figs. 13b and 14b. This explains the performance degradation of two independent methods on the skewed data in the previous experiments. The time on the first phase for two independent methods in Fig. 13c and d is similar and just the proportion in the total execution time is different. This is also true when the data is skewed. As the group cardinality is increased, the second kernel gather_item_num to generate a global hash table from separate tables occupies much time. Thus if the independent hash tables are used, three of the four phases could become the main contributors to the execution time.

Table 5 shows the LLC miss count of each method obtained from Intel VTune Profiler. Overall, the independent hash table exhibits more cache misses than the shared strategy on both the CPU and the coupled GPU. The relative performance in cache misses of various approaches is similar to that of the execution time on the uniformly distributed data sets. In the cases on skewed data, although Linear-S-CPU and Chain-S-CPU have few LLC misses, they spend more time than Linear-I-CPU and Chain-I-CPU on three kernels. The reason is that the two methods using shared hash tables produce more retired instructions or higher CPI. For instance, in Fig. 14d, the number of retired instructions of Chain-I-CPU and Chain-S-CPU is 2,550,960,000 and 5,271,120,000 respectively and the CPI is 1.22 and 8.77. There are more instructions for Chain-S-CPU and on average each instruction needs more cycles. Thus it runs slowly.

Table 5 LLC miss count

Co-processing

Since the modern architecture provides the additional GPU accelerator, we explore the co-processing potentials the coupled GPU could bring in the experiments. Firstly, an operator-level co-processing strategy is adopted to execute different queries on the CPU and the GPU simultaneously, which simulates real application scenarios of databases. We use the previously used eight kinds of workloads at 50% load factor, four of which are based on the uniform distribution and four are skewed data. “Parallel” means every two queries are assigned to the CPU and the GPU until no more two queries in the workload need to be executed. After two queries are finished, the next two queries start. The total sum of time is compared with the time when the corresponding part of queries are independently executed on the CPU and the coupled GPU respectively. The relative time ratio is shown in the figures. If the parallel time is less than the sum of the CPU time and GPU time denoted by “CPU+GPU”, this illustrates the co-processing paradigm could help to increase the performance.

In Fig. 15a and b, the co-processing strategy is a little better than the mechanism on the single processor and the maximum speedup is 18%. Notice, in some cases for example W1 and W3 workloads in Fig. 15a the parallel approach reduces the performance slightly. These workloads are heavier for both the CPU and the GPU than W0 and W2, that is there are more tuples or groups, and for these workloads, the CPU and the coupled GPU are likely to compete for cache and memory resources which will affect the overall performance. In Fig. 15c and d, the workloads contain skewed data and the performance gap between the CPU and the GPU is larger. Thus, the competition is reduced and co-processing could provide better performance. For linear probing, the speedup is between 23 and 33% and for chained hashing, it ranges from 11 to 29%.

Fig. 15

Performance of the operator-level co-processing strategy

Secondly, an intra-operator co-processing method is used to provide fine-grained parallelism. After the CPU completes the task of the first phase, the CPU and the coupled GPU handle different raw data in the second phase to establish a shared hash table. The workload distribution belonging to each processor is based on the previous execution time on separate processors. According to the percentage of the GPU time to the sum of the CPU and GPU time spent on the building phase, an initial CPU ratio is acquired. Then, considering the communication cost between the CPU and the GPU, the actual data ratio handled by the CPU is set empirically at an optimal value around the initial ratio which is a multiple of 0.05 in the experiments. We use this straight workload division way to verify the effectiveness of co-processing. At last, the left job is assigned to the CPU unless the second phase is totally finished by the GPU.

In order to build the hash table by all the work items of the CPU and the GPU, the methods are implemented using OpenCL 2.0 with the Shared Virtual Memory (SVM) feature and the corresponding experiments are done on Intel Core i7-8700 which is equipped with 6 cores and Intel UHD Graphics 630 and supports the SVM technology. SVM allows virtual addresses to be shared between the host and all devices in a context and enables pointer-based data structures. The SVM atomics could be used to guarantee concurrent accesses by the CPU and the GPU to the same memory address. The same workloads tested above are considered here and the ratios of single processor methods to the co-processing approach are shown in Figs. 16a to 17d. “CoP” indicates that the CPU and the GPU work in parallel within the operator.

Fig. 16

Performance of the intra-operator co-processing strategy on the uniform data

Fig. 17

Performance of the intra-operator co-processing strategy on the skewed data

The data sets used in Fig. 16a to d are uniformly distributed. If not considering Fig. 16c, in most cases the intra-operator co-processing method is faster than the corresponding version on the CPU and the coupled GPU for both linear probing and chained hashing. The average speedup over the CPU when linear probing is used is 1.7, 1.2, and 1.1 respectively in Fig. 16a, b, and d and the simultaneous speedup over the GPU is 1.4, 1.5, and 1.3. When chained hashing is adopted, the average time ratio is 1.6, 1.6, and 1.9 for the CPU and 1.3, 1.5, and 1.4 for the GPU. The higher the speedup, the corresponding processor runs more slowly than the counterpart and could acquire better performance improvement by adding extra computing power. In Fig. 16c, the absolute execution time is too short especially for the CPU and there exists a large gap between two processors when the number of tuples is small. Thus, the better choice is to use the CPU only to conduct the query not introducing the coupled GPU as well as the additional communication and contention cost. With the increase of the tuple count, the speedup acquired by the co-processing strategy over the CPU goes up and the maximum value is 3.0 and 2.2 for linear probing and chained hashing respectively.

The results of the data under the Zipf distribution are shown in Fig. 17a to d. Since for the skewed data the GPU methods perform much better than the CPU counterparts, the workload proportion belonging to the CPU is very small which is 5% in the majority of cases and 10% at most. Sometimes the coupled GPU itself shows the best performance. Except the third figure, the average speedup of the co-processing strategy over the GPU method in every figure is around 1.2. The behavior in the third figure is similar to that in Fig. 16c that is the CPU is the top performer at first.

Generally the empirical optimal workload ratio owned by the CPU is smaller than the initial CPU ratio and the performance of the co-processing mechanism is affected by the used value. Thus, an advanced optimizer in databases should be designed in future to produce adaptive execution strategies under considering comprehensive factors from CPU, GPU, and memory.

Discussion

The used example has two columns and each column entry is 4-byte integer. Assume there are n tuples in the table then the data size is 8n. The CPU time is roughly expressed as 8n/B _m + T _o, where B _m is the memory bandwidth, and T _o is the other execution time. If the query is memory-bounded, T _o could be ignored. For a discrete GPU, if through optimization the execution on the GPU could be overlapped with the data transfer via the PCIe bus, the runtime is 8n/B _p, where B _p is the PCIe bandwidth. Usually, B _m is larger than B _p thus it is quite possible the CPU outperforms the discrete GPU. Although the coupled architecture is our main research object, ideally the CPU and two kinds of GPUs are not contradictory and the study on the coupled architecture could be combined into the technologies on discrete GPUs. A better performance may be gained if all the computing resources such as CPUs, coupled GPUs, and discrete GPUs are utilized fully and simultaneously in future.

Related work

On the traditional multi-core CPU, there have existed many studies on group-by and aggregations [1–3, 19]. Cieslewicz et al. [1] focused on chip multiprocessors to study different strategies and factors of affecting performance and introduced an adaptive aggregation operator to choose the correct strategy. The used hash function was multiplicative hashing and chaining was utilized to resolve hash collisions. The research [2] found that for aggregation the complexity of hashing was the same as that of sorting and mixed hashing and sorting routines in the same algorithmic framework to leverage the advantages of both approaches. Ye et al. [3] provided a solution to perform parallel aggregation on the Intel Nehalem architecture and proposed two algorithms to acquire good performance. Gubner et al. [19] studied optimizations using SIMD instructions and presented an in-register aggregation technique which can be vectorized easily. A seven-dimensional analysis of hashing methods [15] have been performed on Intel CPU processor using indexing as a use-case. Some dimensions are also considered in this paper such as hash functions and hashing schemes. The differences include the following aspects: the emerging coupled CPU-GPU architecture is our goal and we are interested in the performance of different methods on the coupled GPU and two processors besides only the CPU; the grouping and aggregation operation is our research purpose which is different from indexing; the parallel methods not the single-threaded hashing are studied carefully in our work.

As discrete GPUs have become popular, they have been used as accelerators in database research [5, 6, 8–10, 20–22]. Karnagel et al. [5] studied offloading the grouping and aggregation operator to a discrete GPU and provided the corresponding analysis and a model with a heuristic optimizer. Compression, query-compilation-like fusion and a scheduling mechanism were investigated by the research work [6] to use both the CPU and the GPU for TPC-H Q1. There have also appeared some studies on coupled architectures [4, 7, 11–13, 23–25]. Power et al. [4] explored scan-aggregate queries on the CPU, the discrete GPU, and the integrated GPU and found that an integrated GPU was faster than a discrete GPU and a CPU. Linear probing was used to implement the hash table and MurmurHash was the hash function. Rosenfeld et al. [7] examined the influence of different parameters on hash aggregation on five discrete GPUs and one integrated GPU and presented an algorithm to optimize execution parameters. Multiply-shift and linear probing were used in the work. The paper [25] provided the first step of the work to improve group-by and aggregation by using the coupled GPU. The research object was the grouping and aggregation based on chained hashing, one of the common hashing schemes, and in terms of hash functions, only Multiply-shift was used directly. The contribution was to present a co-processing approach which firstly implemented data parallelism using a shared hash table. Despite the previous work from researchers and us, a systematic analysis of grouping and aggregation algorithms on such architectures is still missing, which is the original intention of this paper. In this paper, eight different dimensions are considered in the extensive experimental study and analysis, including five hashing schemes, two hash functions, six low load factors and high ones, both shared and independent hash tables and two kinds of co-processing strategies. We hope the current work could provide more meaningful insights into the operator behavior on the coupled CPU-GPU architecture and some meaningful conclusions could help database researchers to design the high-performance algorithms on modern processors.

In terms of optimization strategies on hybrid heterogeneous architectures, many other research findings have been provided [26–36]. Heuristical and machine-learning-based load distribution and balancing models on a hybrid CPU-GPU database systems were proposed by the authors [26] and multiple models such as linear regression, random forest, and Adaboost were used to dynamically decide the processing unit. Nozal et al. [27] designed an OpenCL-based runtime system EngineCL to simplify the co-execution of data-parallel kernels on different devices of a heterogeneous system. The research work [28] implemented an abstract entity Multi-Controler in a library to coordinate the management of heterogeneous devices. In the paper [29] a field-programmable gate array was utilized to accelerate query processing in a searchable encrypted database system and a cache function was proposed to improve the access. Singh et al. [30] focused on an energy-efficient run-time mapping and thread partitioning method to execute concurrent OpenCL applications on the CPU and the GPU cores. The authors [31] integrated the FPGA (field-programmable gate array) into EngineCL and effective cooperation among the CPU, GPU and FPGA were implemented. An OpenCL runtime FluidiCL was proposed by Pandit et al. [32] to execute a program coded for a single device on both the CPU and the GPU. Most of these studies are related to OpenCL. Wang et al. [33] studied how to migrate a CUDA-based ultrasound imaging code to oneAPI code to run on different hardware. Intel oneAPI was equipped with co-processing strategies in the work [34] to execute the same kernel between different devices and static and dynamic policies were exploited. Hammond et al. [35] provided a comparative analysis of Kokkos and SYCL programming models. The study [36] analyzed the feasibility of solving large-scale Markov decision processes with value iteration in low-power heterogeneous platforms using different programming approaches and scheduling strategies. SYCL, a Khronos standard for heterogeneous programming build on C++, is the model used in these studies. Overall, interesting and helpful insights in the acceleration technologies on hybrid heterogeneous architectures could been found.

Conclusions

In this paper, we have studied in depth group-by and aggregation on CPU-GPU processors. Our observations are described throughout the paper. The overall conclusions are as follows: (1) If the workload is light, for example, the data set and/or group cardinality are small, the independent hash table combined with linear probing or chained hashing on the CPU is preferred. As the group cardinality or the data set gets bigger, linear probing on the CPU using a shared hash table is the best. If the workload keeps getting heavier, the shared GPU linear probing is a candidate that could be considered, and the shared GPU chained hashing is also a good choice in practice in terms of dynamically resizing the hash table. (2) Cuckoo hashing, the variant of chained hashing and Murmur hashing have some disadvantages and are not the first choices. (3) For both linear probing and chained hashing, the grouping and aggregation could benefit from co-processing on the hybrid architecture. The coupled GPU plays a positive role no matter whether it is used as a stand-alone processor or jointly with the CPU.

For the performance optimization, various co-processing mechanisms should be explored further on the coupled architecture, such as adaptive strategy selection or even different workloads and hashing methods on different processors. For future work, we will consider optimization techniques in the direction and design fine algorithms on choosing correct strategies.
